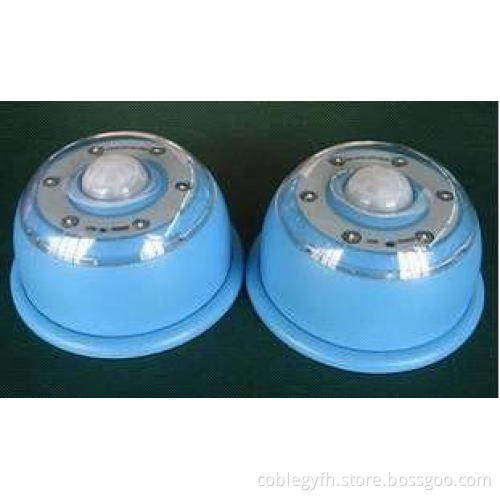

Wireless Dome Led Kitchen Cabinet Lights 12 Volt For Stairw

Description

Adopt advanced LED technology with high efficiency and advanced Infrared detection sensor technology.

Internally installed Environmental temperature compensation circuit and supply voltage regulator control

circuit .The whole circuit with optimized design,and adopting material with high quality and high precision ,

is enjoying a great popularity over the world.

Quick details

1.Adopting advanced LED technology: high efficiency, energy saving, environmental, long service time,

anti-explosive.
2.Adopting advanced Infrared detection sensor technology, highly sensitive, anti-disturbance, quick

response.
3. Automatic induction.
4. Delicate appearance design and it is light and fashionable.
5. Reasonable structural design, concealed fastening. 6. Internally installed light perception component, and can automatically identify daylight or night.

STBY Standby at daylight ,

induction lighting at nigh


Specification

Induction form: Adopting double window, large diameter of famous infrared sensors
Induction control: The built-in light sensor, the temperature compensation device
Induction sensitive distance: >3m
Induction sensitive Angle: 120
Number of light: 6
STDBY current: 70microamps
Operating current: 70Ma
Power supply: 4 AAA battery or rechargeable battery
Delay time: 20, 60, 90, normally on (as emergency light)
Induction interval time: 5-7second
Time for Power on self test: 20second
Favorable temp & humidity: -5℃-38℃, 5%-93%
Dimension: 75*75*40mm
Storage temp:-10℃-40℃
Weight: 88g (battery excluded)

Application

Doorway,stairway, stair, attic, inner room, The basement, garage, the cellar, wardrobe, hotel ambry

ward robe , kitchen cupboards, bookcase, in-room safe, tents, car back box.

Packaging Details:

Box size: mm

Net weight: KG

Gross weight: KG

Carton size: CM

Gross weight: KG pcs / carton

Installing Method

Gluing with double faced adhesive tape
Screw fixation
Magnetic bases

Attentions

This light is internally installed light sensor, it is maybe unable to work in daylight, you can modify the

operating mode according to your need.
you are supposed to use the alkaline battery with high performance, such as 555 brand, NANFU, GP

and AAA rechargeable battery. The general alkaline battery with little capacity and much electric

resistance may reduce the service time, shorting detecting distance, and causing automatic lighting of

the light.
When the delay switch is set as normally on, it can be used as emergence light, lighting until the battery

is run out.
This light is not waterproof, and need not installed in any place with much rain, heavy humidity, and low

temp, very changeable light.
Sensor light should not be set beside the window, or any place with strong light environment.
Operating temp must be controlled between -5℃-40℃
