Energy Saving LED Video Wall Panel MBI5024 IP43 , Large LED Display Hire 150° / 150°
Quick Detail:
- High cost-effective with good quality
- High fresh frequency
- Light weight and ultra slim design
- High Refresh with HD video
P5 1800cd 1R1G1B 3-IN-1 SMD Rental LED Display , Energy - Saving LED Display,P5 Rental LED display with Die Casting Aluminum Cabinet
Specifications:
|
Part Number |
Teeho-P5-8S |
|
Resolution |
32(H)×32(V) |
|
Pixel Pitch |
5mm |
|
LED Configuration |
1R1G1B 3-IN-1 SMD |
|
Pixel Density |
40,000 pixels/ m2 |
|
Module Size |
160mm*160mm |
|
Cabinet size |
640mm x 640mmx8mm |
|
Driving IC |
MBI5024 |
|
Driving Method |
1/8 Scan, Constant Current |
|
Cabinet Weight |
7.5kg/sq.m. |
|
Mechanical Ratings |
|
|
Hanging Weight Support |
2T |
|
Surface Flatness |
Gap<0.5mm |
|
Optical Ratings |
|
|
Brightness |
1,800cd/ m2 |
|
View Angle |
150°/150° |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display COLOR |
16.7M |
|
Brightness Adjustment |
0~100% |
|
Power Supply |
|
|
Operation Power |
90~260V 50~60Hz |
|
Max. Power Consumption |
850W/ ㎡ |
|
Average Power Consumption |
280W/ ㎡ |
|
Control System |
|
|
Control Mode |
Synchronous display with control PC by DVI |
|
Frame Update Frequency |
60~85Hz |
|
Screen Refresh Frequency |
300~1000Hz |
|
Gamma Correction |
-5.0~+5.0 |
|
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
|
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
|
Brightness Correction |
Pixel, Module, Cabinet |
|
Environmental |
|
|
Operating Temperature |
-30°~+60° |
|
Operating Humidity |
10~95% RH |
|
Operating Life |
100,000hours |
|
MTBF |
10000hours |
|
Protection Level |
IP43 |
|
Out of Control Rate |
<0.01% |
Description:
1. Ultra thin and slim design
2. High Contrast Ratio
3. Hanging beam structural design makes it easy and fast for installation
4. Locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
5. Neat and Hidden Wiring allow the led display more tidy and beautiful.
Applications:
Advertising media
Sports stadiums
Airport station integrated information dissemination
Public area.

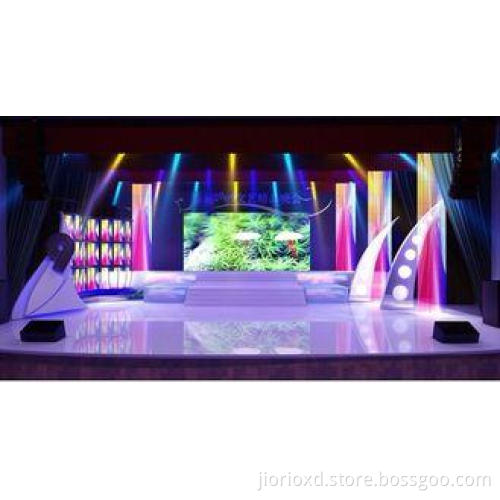

Stage background
Hotel meeting room
Competitive Advantage:
1. Light and slim: cabinet size 640mm*640mm*8mm, weight 10kg, the thinnest point is only 50mm.
2. High structure performance: easy connection of each components, modules and HUB card
3. High color consistency and contrast: The module mask is designed with rubber material, screws not needed, high color contract and flatness.
4. Beautiful appearance: humanized arc handle design, it's a perfect show of technology and art.
