E26 B22 LED Bulb PCB Lighting Parts 1.0mm / 1.2mm / 1.5mm D
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

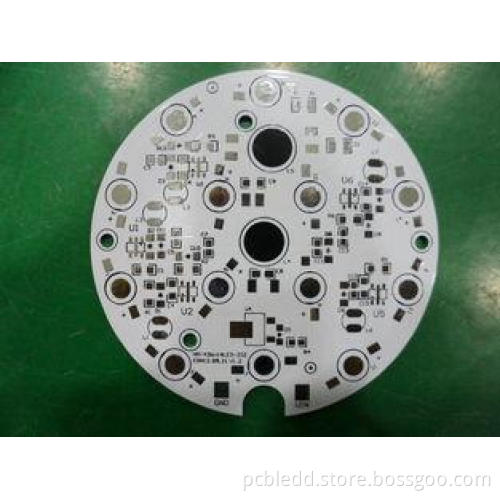

E26 B22 LED Bulb PCB Lighting Parts 1.0mm / 1.2mm / 1.5mm Double Side LED PCB
Professional PCB Manufacturing
- Base Material: Aluminum
- Layer: 1 layer
- Board Thickness: 1.0mm/1.2mm/1.5mm
- Board Dimension: Diameter 30mm,45mm,50mm,55mm,60mm,65mm(it can be customized)
- Copper layer: 1oz/2oz/3oz
- Solder Mask: White/Black/Blue/Red
- Silkscreen: Black
- Surface finish: LF HAL
- Outline Profile: CNC routing/V-Cut/Punching
- All of the parameters can be customized!
Applications
It can be use 2835,5630,3014,1W high power LEDs
Special for 3W,5W,7W,9W,12W,15W,18W LED Bulb Light
Lead Time
Samples: 3-4 days
Mass Production: 7-15 days(depend on the quantity)
Payment Terms
T/T,Western Union
Packing and Shipment
Vacuum package in carton
Factory Capability
|
Item |
Manufacturing Capability |
|
Surface Treatment |
OSP |
|
PCB Layer Type |
Single side,Double side |
|
Max. Working Panel Size |
1500mm*600mm |
|
Min. Working Panel Size |
4mm*4mm |
|
AL Substrate Thickness |
0.3mm-4mm |
|
Min. Conductor width |
0.15mm |
|
Min. Conductor spacing |
0.15mm |
|
Min. Drilling hole size |
0.2mm |
|
Plate Thickness Tolerance |
±0.1mm |
|
Finished Panel Tolerance |
±0.1mm |
|
V-CUT Alignment |
±0.1mm |
|
Hole Dia Tolerance |
±0.05mm |
|
Hole Position Tolerance |
±0.076mm |
|
Finished Copper Thickness |
35um-105um(1oz-6oz) |
|
Etching Under Cut |
>/=2.0 |
|
PTH&Panel Plating Uniformity |
>90% |
|
Eing/Flash Gold Thickness |
1-5u’’ |
|
Solder Mask Thickness |
15um-35um |
|
Min. Solder Mask Bridge |
0.076mm(3mil) |
|
Silk Screen |
White/Black(depend on your requirements) |
|
Thermal Conductivity |
1.0~20W/MK |
|
Withstand Voltage |
AC 2000V,DC 1500~4000V |
Shenzhen Jianhongda Technology Co.,Limited is a professional manufacturer of LED PCB&PCBA with well-equipped testing equipment and strong technical force.Founded in June 2009 , with forge ahead of our company staff, the company has now developed into a middle-scale professional production site of metal breadboard , the existing production plant and office area of 5000 square meters , currently employs 200 people.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in LED light/lamp, CPUboard, Powersupply, Automotive, Regulator, Powermodule, SWregulator, Motorregulator, EPS,
PowerAMP, High frequency AMP, Power Electronics , Inverter, Transistor, Motor Driver, Micro-strip circuit and other industries.
