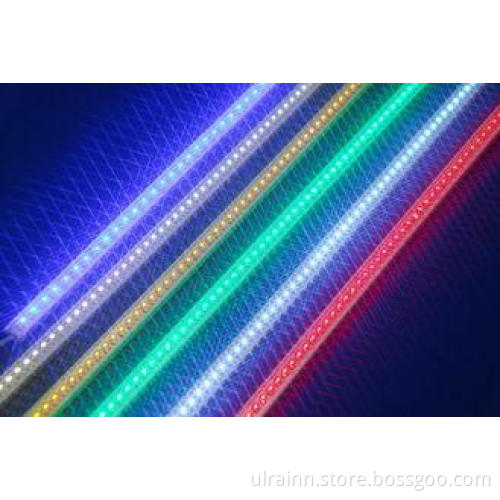

Epistar SMD LED 12V LED Light Bar High Brightness For Architectural Decorative
Quick Detail:
1) High brightness waterproof SMD 2835 LED bar,CE&ROHS approved 2 years warranty
2) Long lifespan 30,000 hours waterproof high bright SMD 2835 LED bar
3) High efficiency waterproof LED bar, aluminum alloy SMD 2835 light bar
Description:
1. PCB made of high heat conducting aluminum alloy
2. Epistar chip with high brightness SMD LED beads
3. 6063 T5 waterproof groove made of high quality aluminum alloy
4. Dow-Corning glue and Shin-Etsu glue are used
5. Lifespan:30,000 hours
6. Certificate: CE&ROHS
Specifications:
|
Model : |
GT-2835-72-X |
|
Dimensions(mm): |
10000*12 |
|
Power : |
17.28W |
|
Lumen : |
20-22lm/22-24lm |
|
Input Voltage : |
12v/24v |
|
Color : |
Red/ Yellow/ Blue/ Green/white/ Warm white |
|
Protection Technology : |
PVC cover/ Glue waterproof |
|
Material: |
Aluminum |
|
Life Span: |
30,000 hours |
|
Packaging: |
Standard Package |
|
Warranty |
2 years |
|
Certification: |
CE,ROHS |
|
Part No. |
Color |
Model |
Size(L*W) |
Watt |
Volt |
Lumen |
|
GT-2835R-72-X |
Red |
GT-2835-72-X |
10000*12 (mm) |
17.28W |
12v/24V |
20-22lm/ 22-24lm |
|
DT-2835Y-72-X |
Yellow |
|||||
|
DT-2835B-72-X |
Blue |
|||||
|
DT-2835G-72-X |
Green |
|||||
|
DT-2835WW-72-X |
WW |
|||||
|
DT-2835W-72-X |
White |
Competitive Advantage:
1. Energy saving and emission reduction
2. Long lifespan 20000hr
3. Emit sweet and fragrant lighting
4. Minimize maintenance work and cost
5. Available for low voltage, low heat generation & no fire risk
6. CE, RoHS approval
7. Easily bent to any shape according to user's requirements
8. Easily installed on surfaces: glass, wood, metal, plastic
9. Designed to offer users maximum simplicity
Installation
Applications:
1 Architectural decorative lighting
2 Archway, canopy & bridge edge lighting
3 Amusement park, theater & aircraft cabin mood lighting
4 Emergency hallway lighting
5 Auditorium walkway lighting
6 Stairway accent lighting
7 Concealed lighting
8 Backlighting for signage letters
9 Channel letter lighting
10 Cove lighting
