Indoor Ceiling Downlights LED 200LM High Power LED Source 1
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|

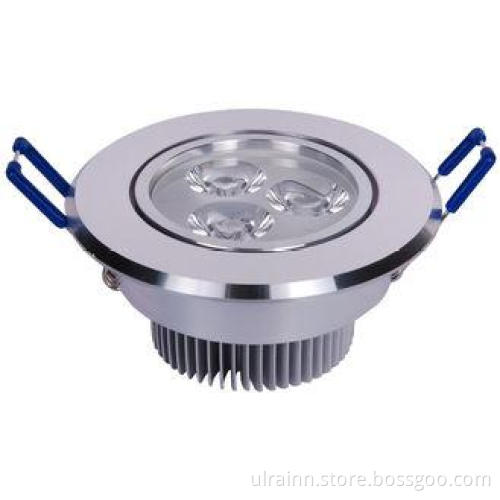

Indoor Ceiling Downlights LED 200LM High Power LED Source 1W No Mercury
Quick Detail:
- Item: LED down light
- Power:3*1W
- Luminous:200LM
- Material: Aluminum+PC
- Led Type: 1W High power led source
- Led Number: 3PCS
- Power supply: Internal constant current led power supply
- Size: Φ91*45mm
- Mounting hole size: Φ77mm
- Color-rendering index:≥70
Description:
- Use integrated Epistar chip & highly stable power supplies to guarantee the products lifespan
- Universal input voltage (AC100~240V 50/60HZ) for global use
- Aluminum plus PC case for efficient heat dissipation.
- Lifespan more than 50,000 hours
- CE & RoHS Approval.
Specifications:
|
Model: |
DDH-3CP3-81S-W |
|
LED Qty: |
3pc |
|
LED Type: |
Epistar chip |
|
LED Power: |
3*1W |
|
Power Consumption: |
4.5W±0.5W |
|
Input Voltage: |
AC100~240V |
|
Frequency rate Range: |
50/60HZ |
|
Lamp Efficiency: |
>85% |
|
Power Factor: |
>0.5 |
|
Color Rendring Index: |
>80 |
|
Color-rendering index: |
≥70 |
|
Beam Angle: |
30º |
|
Color Temperature: |
6000k±500k |
|
Luminous Efficiency: |
200±30 LM |
|
Working Temperature: |
-40℃ ~ +55℃ |
|
Storage Temperature: |
-35 ℃ ~ 80℃ |
|
Life span: |
>30,000hrs |
|
Certification: |
CE&ROHS |
|
Mounting hole size: |
Φ77mm |
|
Dimension: |
Φ91*45mm |
|
N.W |
530g |
Competitive Advantage:
1.Easy installation.Recessed mounted by spring
2.No UV or RF interfcernce, No mercury or lead
3.High power factor, constant voltage power supply and constant flux.
4.Unique structure for excellent heat dissipation
Installation
Applications:
widely used in general lighting, especially for shops, cabinet, meeting rooms, showrooms and boutiques engaging in costumes, bags, shoes, and so on.
