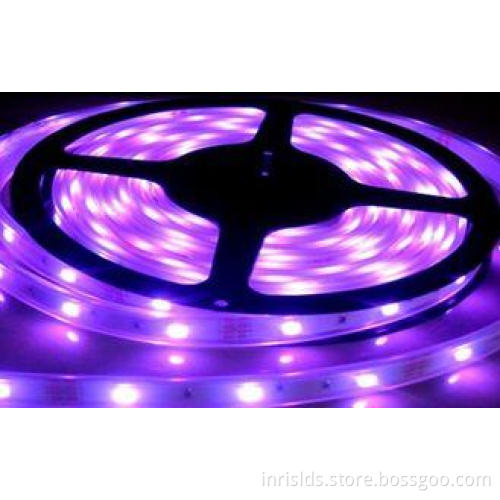

High Brighteness SMD3528 Flexible LED Strip Light FPC Long
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
High Brighteness SMD3528 Flexible LED Strip Light FPC Long Life
Description:
1 3528 LED adopted
2 Red,Yellow,Blue,Green,White,Warm White,Pink color available
3 High luminance efficient and low power consumption
4 Easy installation
5 Adhesive back,peel & stick
6 Long Life over 50, 000 hours of usable life
7 CE RoHS compliant
8 3 years warrenty
9 Non-waterproof,Ip20
Applications:
Ideal for sign letters and channel letters,concealed lights,room lighting
Specifications:
SMD-3528-120LEDs/meter
Dimension: 5000*8*2.2mm
LED Chip: 3528 SMD TOP LED
Emitting color: Red, Yellow, Blue, Green, White, warm white, Pink
LED Quantity: 120pcs/meter, total 600pcs
Material: FPC
FPC color: Yellow, White, Black
Beam Angle: >120°
Working Voltage: DC12V / DC24V
Rated Power: 9.6W/m
Life Span: ≥50000 hrs,
Working Temperature: -25℃~55℃
Working Humidity: 10%~95%
Protection Degree: IP20
Packaging: 5m/roll
|
Model |
Color |
Dimension(mm) |
LED Qty |
Voltage |
Watt(w) |
Lumen/meter |
Ip20 |
|
FV-120-S3528-R |
Red |
5000*8*2.2 |
120/meter |
24V |
9.6w/m |
240 |
|
|
FV-120-S3528-Y |
Yellow |
5000*8*2.2 |
120/meter |
24V |
9.6w/m |
240 |
|
|
FV-120-S3528-B |
Blue |
5000*8*2.2 |
120/meter |
24V |
9.6w/m |
300 |
|
|
FV-120-S3528-G |
Green |
5000*8*2.2 |
120/meter |
24V |
9.6w/m |
480 |
|
|
FV-120-S3528-W |
White |
5000*8*2.2 |
120/meter |
24V |
9.6w/m |
780 |
|
|
FV-120-S3528-WW |
Warm White |
5000*8*2.2 |
120/meter |
24V |
9.6w/m |
720 |
|
|
F-120-S3528-P |
Pink |
5000*8*2.2 |
120/meter |
24V |
9.6w/m |
240 |
