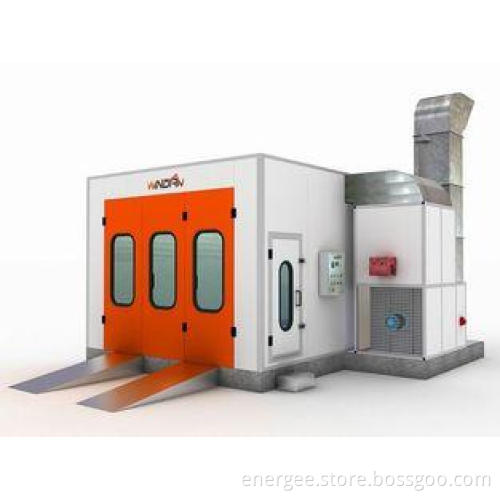

Stainless steel heat exchanger Auto Spray Booths for car repair, painting, baking WD-10A
1.White, orange. Blue
2.For automobile
3.Complete steel assemble Basement and floor
| Inside Dimension | 6900X4000X2700MM(LXWXH) &22'6''X13'1''X8'9'' (LXWXH) |
| Outside Dimension | 7000X5600X3500MM(LXWXH)&23'X18'4''X11'5'' (LXWXH) |
| Main door | 3-fold, 3200X2650MM(WXH), with heat insulation glass window, handmade door without aluminum alloy door frame |
| Personal door | 1-fold, 800X2000MM (WXH) with one step. There is two sets of pressure lock which will automatically open when the pressure inside is over the limi |
| Booth System | Wall panel :EPS(epispastics polystyrene) heat preservation panel doubleskinned , tongue and groove construction, thickness: 50MM EPS , roof panel: galvanize plate |
| Basement and floor: Complete steel assemble, height: 300mm. 2 rows of grids, 3 rows of embossed plates. 2Pcs ramps, each size:520X2000MM(WXL) |
|
| Lighting System | Upper light: 3Pcs X8units=24PcsX36W, Lower light: option. Phillip brand light tube with PAK light holder |
| Generator setting type | Side back intake air, quadrate steel frame, coated steel plate |
| Ventilation System | Intake fan: 1X 7.5KW turbo fan, direct drive, air capacity:23000m3 /h Air Speed: 0.22m/s |
| Exhaust fan: Optional 1X5.5PCS double-intake centrifugal fan for exhaust air | |
| Heating system | Italian Riello G20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 6~8 min. Gas burner as optional |
| SUS304 Stainless steel heat exchanger, highest temperature 80C, 1pc electric damper from spraying to baking cycle. Reasonable structure, safe and reliable, big heat exchanging area, high heat utilization, more than 87.1% heat exchanging rate | |
| Filter system | Prefilter, high efficiency filter(ceiling filter), floor filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, emergency stop, failure indicator |
| Total power | 9.5KW |
Spray booth operating priciple
