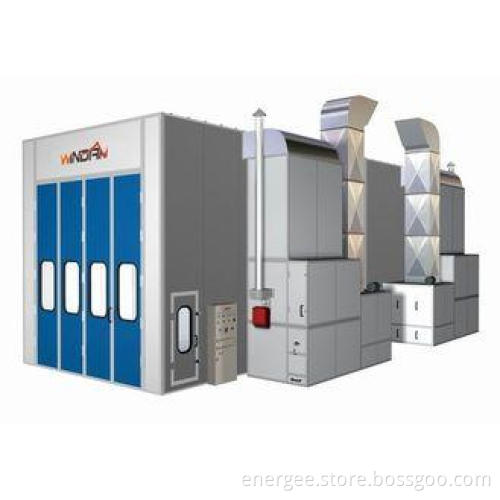

Double - Intake Centrifugal Fans Riello RG5S Burner Industrial Spray Booths with baking
| Booth Dimension | |
| - Internal Size(L×B×H) | 15000×5000×5000mm & 49'2''X16'4''X16'4'' |
| - External Size(L×B×H) | 15144×6896×5600mm & 49'7''X22'6''X18'4'' |
| Foundation and Floor | |
| - Grid | 96M ( 2 rows air exhust plenum chamber) |
| - Metal Basement |
Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is 12650×760mm(L×W), with galvanized grids made by twisted steel and flat bar above |
| Wall and Door | |
| - Steel Wall |
Profiled bar beams in the roof to strengthen the room body. Double construction with insulations EPS , thickness 70mm, width:1150mm, tongue and groove interlock structure |
| - Roof Panel | Single profiling galvanization plate |
|
- 4-Folded Entrance Door With Safety Glass Window |
1 Unit, 4000×4500mm (WxH) galvanized steel cover frame, with polystyrene(EPS) inside |
|
- Operator’s Door With Safety Glass Window |
2Units, 800×2000 mm(W×H) |
| Lighting System | |
| - Ceiling Lights | 18Units, each 4×36 W, with electronic ballasts |
| - Side Lights | 12U22Units, each 4×36W, with electronic ballasts |
| - Brightness | >1000LUX |
| Filter System | |
| - Filter | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter |
| - Filtering area | 44M2 |
| Ventilation System | |
|
- Intake air system (Fresh Air) |
4×7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, total air capacity 42000m3/h |
|
- Exhaust air system(Exhaust Air) |
2×11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, total air capacity 36000m3/h |
| - Damper actuates |
Equip pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air |
| Heating System | |
| - Heating Exchange | Stainless Steel |
|
- Heating Exchange Capacity |
260000Kcal/h |
|
- Max. Drying Temperature |
80 °C |
| - Heating time | 8-10 min (from 20 to 60) by Drying Phase |
| - Heating Type (optional) | RIELLO RG5S (260000 kcal/h)Diesel )2set |
| Control Box | |
| - Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start |
| - Total power | 63KW |
