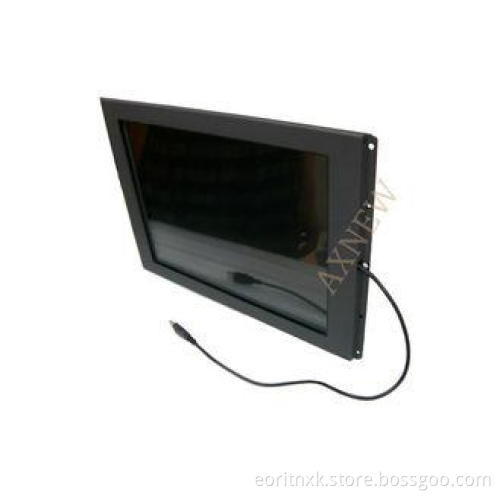

15 inch 1024X768 Vertical IR Touch Screen Monitor 350cd/m^2
  • 15 inch 1024X768 Vertical IR Touch Screen Monitor 350cd/m^2
15 inch 1024X768 Vertical IR Touch Screen Monitor 350cd/m^2

15 inch 1024X768 Vertical IR Touch Screen Monitor 350cd/m^2

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen China
Product Description
Product Description


15 inch 1024X768 Vertical IR Touch Screen Monitor 350cd/m^2 For POS


15 inch industrial LCD open frame monitor with VGA DVI input s
IR Touch with anti-vandal to protect the LCD . 250 nits/ 350nits/ 450nits are the options brightness for your selection.
They used for Automatic equipments, Advertising , vending embedded system, Kiosks application etc.


Quick Details:

Model: AXD-15OPHAT1-V2
Screen Size:15’’
Screen format: 4:3
Display Resolution(pixel):1024X768
Contrast Ratio:600:1
Brightness:350cd/m^2
Storage temperature : -20℃~60℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: IR touch
Product status: Stock


Features and Advantages

1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;IR Touch screen with anti-vandal to protect the LCD
6. 15 inch open frame touch monitor for application control , advertising player ,campus and industrial terminals etc

Display Specifications

Display

15" Color TFT Industrial IR touch Monitor

Model Name

AXD-15OPHAT1-V2

Active Display Area (mm)

305.7(H)x229.7(V)

Pixel Pitch (mm)

0.297(H)x0.297(V)

Resolution (Pixel)

VGA (1024x768)6 bit + FRC

Brightness (CD/m^2)

250 nits; 350nits; 450 nits Options

Contrast Ratio

600:1

Viewing Angle (CR >=10)

160/140

Power consumption

8.6 W typical, normal operation

Touch Screen

Infrared touch panel( USB Controller),anti-vandal, dust-proof,water-proof

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Steel housing & black Color

Dimensions

342.0x 296.0x50.0(mm)

Mounting

Embedded , left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-10~60℃

Storage Temperature

-20~60℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

15” IR touch monitor with VGA Input and power adapter
