Digital Vertical 15" 1024x768 Open Frame LCD Monitor VGA DV

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China

Product Description

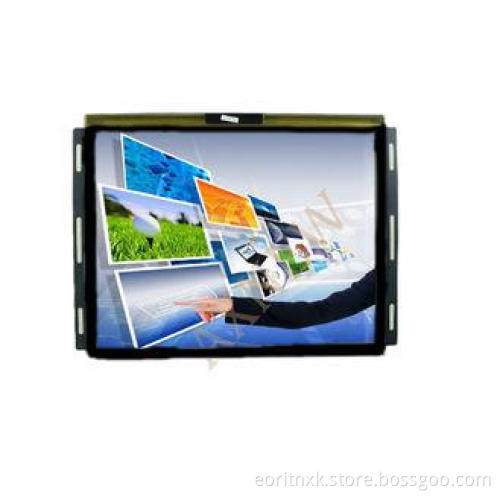

Vertical 15" 1024x768 Open Frame LCD Monitor VGA DVI Input

15’’ Projected capacitive touch screen LCD open frame monitor with VGA DVI input. Anti-vandal with high and exact control for high requested working environment.
Projected capacitive touch is new and popular touch technology for Medical industry , Automatic equipments, Advertising , vending embedded system, ATM application etc.

Quick Details:

Model: AXD-15OPEXT2-PRO
Screen Size:15’’
Screen format: 4:3
Display Resolution(pixel):1024x768
Contrast Ratio:600:1
Brightness:250cd/m^2
Storage temperature : -20℃~70℃
Input signal: VGA DVI
Power Input: DC 12V
Touch Type: Projected capacitive touch
Product status: Stock

Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; touch screen options
6. 15 inch open frame Projected capacitive touch is new and popular touch technology for Medical industry , Automatic equipments etc

Display Specifications
Display	15" Color TFT Projected Capacitive touch Monitor
Model Name	AXD-15OPEXT2-PRO
Active Display Area (mm)	305.7(H)x229.7(V)
Pixel Pitch (mm)	0.297(H)x0.297(V)
Resolution (Pixel)	VGA (1024x768)6 bit + FRC
Brightness (CD/m^2)	350nits; 450 nits;1000nits Options
Contrast Ratio	700:1
Viewing Angle (CR >=10)	160/140
Power consumption	8.6 W typical, normal operation
Touch Screen	Projected Capacitive touch panel( USB Controller)
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D(Optional)
Power Input	DC 12V,4A 48W
Mechanical Specifications
Construction	Steel housing & black Color, anti-vandal
Dimensions	359.0x 270.0x46.3(mm)
Mounting	Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	0~50℃
Storage Temperature	-20~60℃
Rating	Facilitate installation of the demolition,solid portfolio
Ordering Information	15” projected capacitive touch monitor with VGA Input and power adapter
