Wall Mounting 1280x1024 TFT Liquid Crystal Display Monitor
  • Wall Mounting 1280x1024 TFT Liquid Crystal Display Monitor
Wall Mounting 1280x1024 TFT Liquid Crystal Display Monitor

Wall Mounting 1280x1024 TFT Liquid Crystal Display Monitor

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen China
Product Description
Product Description

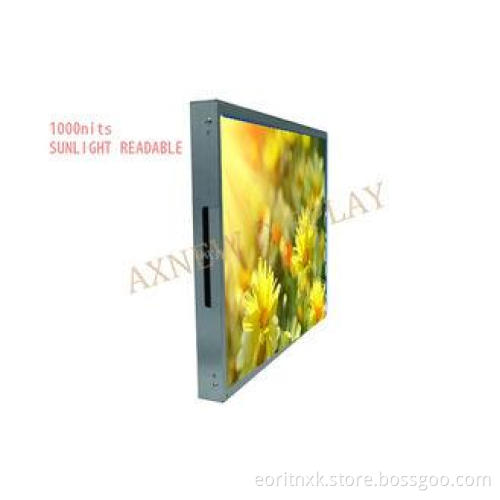

Wall Mounting 1280x1024 TFT Liquid Crystal Display Monitor 4:3 For Kiosk


17 inch sunlight readable industrial LCD open frame monitor with VGA DVI input slim and thin design for 17’’ LCD( NO TOUCH), 1000nits high brightness LCD widely used for Outdoor Automatic equipments, Advertising , vending embedded system, Kiosks application etc.


Quick Details:


Model: AXD-17OPN1P1-VH
Screen Size:17’’
Screen format: 4:3

Display Resolution(pixel):1280x1024
Contrast Ratio:800:1

Brightness:1000cd/m^2
Storage temperature : -10℃~80℃

Input signal: VGA DVI
Power Input: DC 12V

Product status: Stock


Features and Advantages

1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;No touch screen, resistive touch if needed
6. 17 inch high brightness open frame LCD for application control , advertising player ,campus and industrial terminals etc

Display Specifications

Display

17" Color TFT Open Frame Monitor (1000NITS)

Model Name

AXD-17OPN1P1-VH

Active Display Area (mm)

337.92(H)x270.33(V)

Pixel Pitch (mm)

0.264(H)x0.264(V)

Resolution (Pixel)

SXGA (1280X1024) 262K/16.2M Color

Brightness (CD/m^2)

1000cd/m^2

Contrast Ratio

800:1

Viewing Angle (CR >=10)

160/160

Power consumption

36.8W typical, normal operation

Touch Screen

Resistive; SAW ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Steel metal chassis & Galvanized Color

Dimensions

387.60 x 333.4x 45.30 (mm)

Mounting

embedded optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-5~70℃

Storage Temperature

-10~80℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

17” 1000nits sunlight readable OP Monitor with VGA input and power adapter
