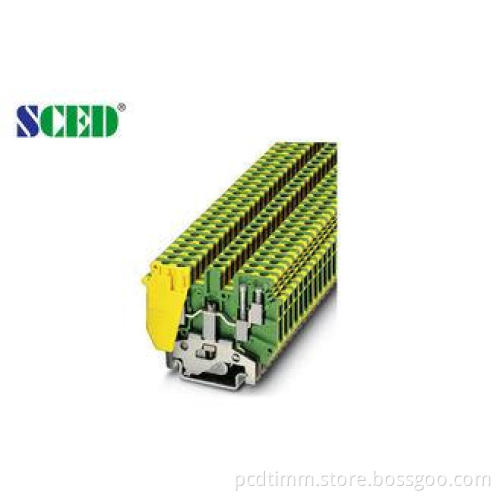

6.2mm AWG 30 - 10 , Rail Mounted Terminal Blocks For Electr
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|
Parameter and Drawing Specifications:
|
Description Color |
Type |
|
Terminal Green & Yellow |
TR-KG4N |
|
Zack Strip White |
ZB6 SZS0.6x3.5 |
|
Rail Material |
Aluminum / Steel |
|
Dimensions |
6.2/63.5 |
|
Height (U35: 7.5/U35: 15G 32) mm |
47/54.5/52.5 |
|
Wire Fixing Screw / Torque Nm |
M3 / 0.6-0.8 |
|
Center Fixing Screw / Torque Nm |
M3 / 0.6-0.8 |
|
Stripping Length mm |
8 |
Detailed product Description:
Terminal Width: 6.2mm, AWG:30-10, Din Rail Terminal Blocks, Ground Terminal Blocks, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks
How to order:
Applications:
Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
