90 Degree Folding Arm Time Parking Barrier Gate with Remote
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

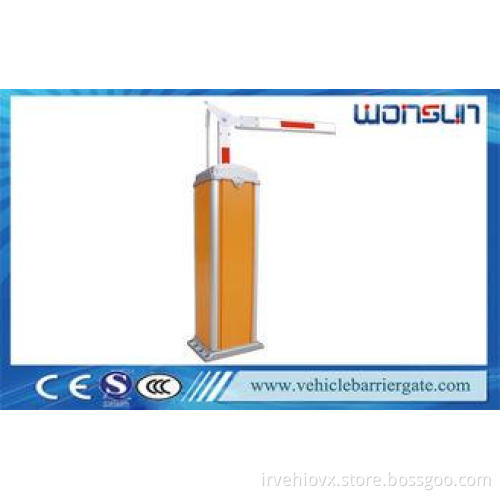

90 Degree Folding Arm Time Traffic Barrier Gate with Remote Comtroller
Quick Detail:
Name: Traffic Barrier Gate
Center height: 0.83m
Machine core working temperature: -40 degrees to +75 degrees
Electric working temperature: -20 degrees to +75 degrees
Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
Rated power: 120W
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WST12221 |
90 degree, Articulated boom |
5m |
6 seconds |
|
WST12222 |
90 degree, Articulated boom |
3m |
3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5)Infrared photocell dasign: for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.
6) Both external and internal loop detectors are supported.
7)Open,Close and Stop controlling interfaces
8)Traffic light signal connection device:red light for stop; green light for pass.
9)Remote control and wire control for selection
10)Delay off the boom close function
Specifications
|
Model |
WST1211 |
|
Working Temperature |
-40℃~+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Communication with customers
Spring installation, Spring relacement
Spring relacement as follows: The Barrier Gate lever to 90 degrees, the door status
1. Spring balance relacement adjustment screw with a hex wrench M88x140mm
2. Use a wrench to relacement the lower spring hanging scroll of a M10 screw: If you do not take a spring hook M10 screw, you can directly relacement the spring. Installation procedure is just the opposite of relacement.
