AAWG(Athermal Arrayed Waveguide Grating)
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs/Month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | EXW |
| Certificate: | CE,FCC,RoHS |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description

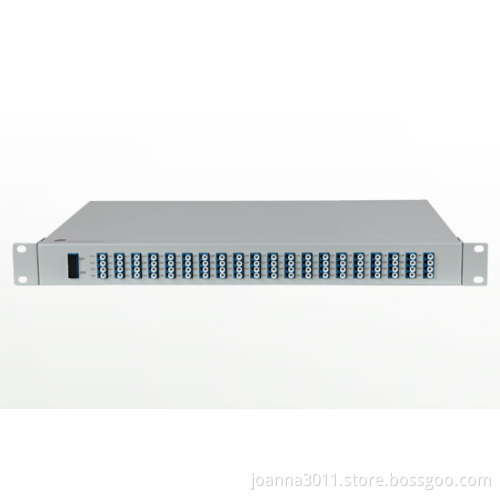

AAWG(Athermal Arrayed Waveguide Grating) module is based on the silica on silicon technology and no electrical power is required.-
The specifications serve for C-band AWG Flattop MUX/DEMUX in DWDM system
| Parameters | Notes | Specifications | Units | |
| Min | Max | |||
| Channels | 40 | Ch | ||
| Channel Spacing | 100 | GHz | ||
| Reference Pass-band | Relative to ITU Grid | ± 0.1 | nm | |
| ITU Frequency | On ITU grid in C-band | 195.90 | 192.00 | THz |
| ITU Wavelength | On ITU grid in C-band | 1530.334 | 1561.419 | nm |
| Center Frequency Accuracy | Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels | -0.05 | +0.05 | nm |
| Insertion Loss | Maximum of the insertion loss across the ITU pass-band over all channels | 6.0 | dB | |
| Insertion Loss Uniformity | Maximum insertion loss variance across all channels | 1.0 | dB | |
| Ripple | Maximum of the loss variance across the ITU pass-band over all channels | 0.75 | dB | |
| 1dB Bandwidth | 1dB from min Insertion Loss, full width, average polarization | 0.36 | nm | |
| 3dB Bandwidth | 3 dB from min Insertion Loss, full width, average polarization | 0.51 | nm | |
| Adjacent Channel Isolation | Ratio of peak transmission to the maximum transmission over both adjacent pass-bands | 25 | dB | |
| Non-Adjacent Channel Isolation | Ratio of peak transmission in channel pass-bands to maximum transmission over all non-adjacent pass-bands | 30 | dB | |
| Total Crosstalk | Ratio of power in channel to power in all other pass-bands | 21 | dB | |
| Polarization Dependent Loss | Maximum ratio of transmissions over all polarization states, over the ITU pass-band | 0.5 | dB | |
| Return Loss | 40 | dB | ||
| Polarization Mode Delay (PMD) | In Reference Passband over all channels | 0.5 | ps | |
| Chromatic Dispersion | In Reference Passband over all channels | -20 | 20 | ps/nm |
