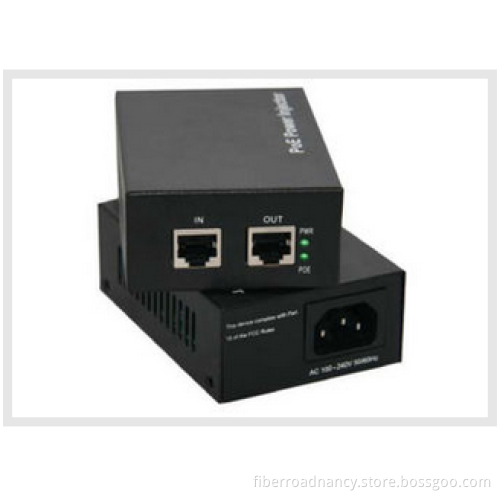

10M / 100M poe powered switch Power Injector

10M / 100M poe powered switch Power Injector

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	ShenZhen
Productivity:	100%
Supply Ability:	3000PCS/month
Payment Type:	T/T,Western Union
Incoterm:	EXW
Certificate:	CE,ISO,SGS
Transportation:	Land,Air

Product Description

10M / 100M poe powered switch Power Injector WIth Poe Pin Out

The single port Power Over Ethernet (PoE)DC Power Injector eliminates the need for a PoEenabled equipment, such as IP Camera, IPTelephones, Wireless LAN and Bluetooth Access Points, etc..The injector is typically installed near the Ethernet hub and connected to a remote PoE device through a single Ethernet Cat 5 cable up to 100meters / 330feets .The injector can support an advanced 802.3af or nonstandard (optional) compliant device which supporting the standard PoE pin out (Pins 4&5 Power + / Pins7&8 Power -)

Technical Specifications:
LAN Data Rates:	10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)
Input Power Requirements:
Input voltage:	100 VAC to 240 VAC
Input frequency:	47 Hz to 63 Hz
Power over Ethernet Output:
Pin Assignment and Polarity:	4/5 (V+),7/8 (V-)
Output Power:	please refer to ordering information
Efficiency:	75% min
Short circuit protection:	auto recovery
Over current protection:	auto recovery
Front Panel Indicators:
Power Indicator:	DC Power Outout (Green)
POE Indicator:	PD Statues (Green)*
Environmental Conditions:
Operating temperature:	0℃ to 50℃
Cooling:	free air convection
Storage temperature:	-20℃ to +85℃
Warranty :	2 years hardware warranty
*Specifications subject to change without notice.
