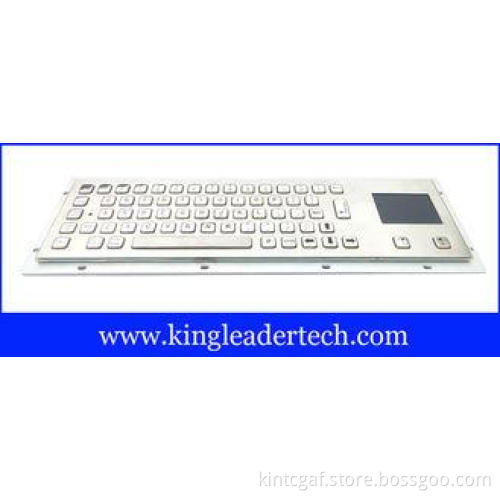

Dust-proof and liquid-proof panel mount industrial kiosk touchpad keyboard MKB-64A-TP
Key Features:
-64 keys, with integrated touchpad
-Panel mount, installing from the back side
-Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel
-Specially designed to operate in harsh environments, making them ideal for the demanding applications in industrial environments
-Built from stainless steel, high vandal-proof
-Dust-proof and liquid-proof, meet IP65 requirement
-PS/2 or USB interface, easy to plug into the computers directly
-Customizable
Specifications:
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics
- Touchpad cover: Composite
Electrical Data
- Power supply voltage: DC 5 V 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics
- Touchpad cover: Composite
Electrical Data
- Power supply voltage: DC 5 V 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20 C to + 60 C
- Storage temperature: - 40 C to + 80 C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40 C: 21 days, IEC 60512-6
- Dry heat test at + 85 C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key:12015g
- Operating temperature: -20 C to + 60 C
- Storage temperature: - 40 C to + 80 C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40 C: 21 days, IEC 60512-6
- Dry heat test at + 85 C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key:12015g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4
Touchpad
- Power supply voltage: 5 VDC 10%
- Current rating (active mode): 17 mA
- Interface: PS2 or USB
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Tracking speed: Maximum 1, 016 m/sec
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and dimension
- Weight: 1.8 kg
- Dimension: Front panel: 400.0x124.0x22.2mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4
Touchpad
- Power supply voltage: 5 VDC 10%
- Current rating (active mode): 17 mA
- Interface: PS2 or USB
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Tracking speed: Maximum 1, 016 m/sec
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and dimension
- Weight: 1.8 kg
- Dimension: Front panel: 400.0x124.0x22.2mm
