P16 Outdoor Full Color led Display 2R1G1B For Advertising 1

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

P16 Outdoor Full Color led Display 2R1G1B For Advertising 10000nits

Specifications

Outdoor advertising video led digital Billboard:
1.RoHS and CE,UL,CCC,ISO
2.Waterproof.
3.High brightness.
4.Competitive price high quality

P16 2R1G1B full color outdoor led display board for advertising,higher brightness 10000nits

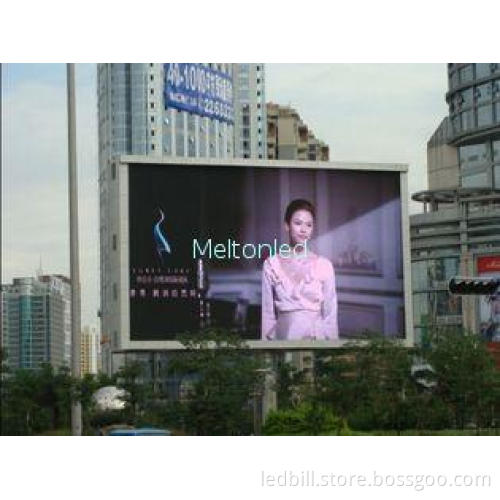

1.Applications: outdoor full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,cross road,highway, airport etc;

2.Features :

Vivid and exact picture, minimum noise, advanced test equipment, support any pc operationsystem and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Specifications:

duct model number	Mled-PH16-399
1.Pixel
Pixel L ED	546
Pixel Configuration	2 R, 1G , 1B
Wave length ( nm )	R: 800-1000 , G:2040-2450, B: 360-430
Pixels Pitch ( mm )	16
2 . Module
Module Size ( mm )	256 * 128 * 20
Module Pixels (dot)	16 * 8
3.Unit box
Module quantities in a unit box	4 (L) * 6 ( H )
Unit box size ( mm )
Unit box size ( mm )	1024 (L) * 768 (H) * 180
Unit box Pixels ( dot )	64 * 48
Unit box material	Aluminum or Iron
Unit box weight (kg)	Aluminum : 42 or Iron : 55
4.Packaging
Packing Way	Two unit boxes packed into one
Packing box material	Wooden case or Flight box
Packing box size (mm)	1150 * 950 * 480
5.electricity parameter
Pixel density (dots/ m 2 )	3906
White Balance Brightness ( cd/m 2 )	≥ 10000
Color temperature ( K )	5000-9500 (choice by user)
Brightness Adjusted	100 grade by software or by Auto-optic induced.
View Angel	Horizontal 110 ° ; Vertical 70 °
Best viewing distance ( m )	16-150
Communication distance ( m )	Internet Wire : 120 Fiber Cable : 1000
Screen work Method	Static
LED driving method	Constant driving current
Gray Grades	16384 levels for each color
Display Color	4 , 398 , 046 , 511 , 104
Refresh Frequency ( Hz )	≥ 3840
Picture display method	Dots to dots display synchronized with CRT
Signal interface	DVI
Input signal	Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV
Display format	800 * 600 , 1024 * 768 , 1280 * 1024
Software	Support windows series system
Protection grades	IP 65
Working temperature (ºC )	-10 +50
Humidity ( RH )	Up to 95
Stored temperature ( ºC)	-30 +70
Screen Lifetime(hours)	≥100, 000
Out of controlled dots	≤3/10, 000 (Out of controlled dots means the pixels of which the brightness,

	and the wave length are both >10% depart to the normal one)
Whole display flatnes	Less than 1mm Juncture
Maintance way	Back-maintained or front-maintained,
Maintance way	modules displaced
Switch power supply	Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ
Power Consumption ( w /m 2 )	Max : 1150 , Average: ≥ 380
