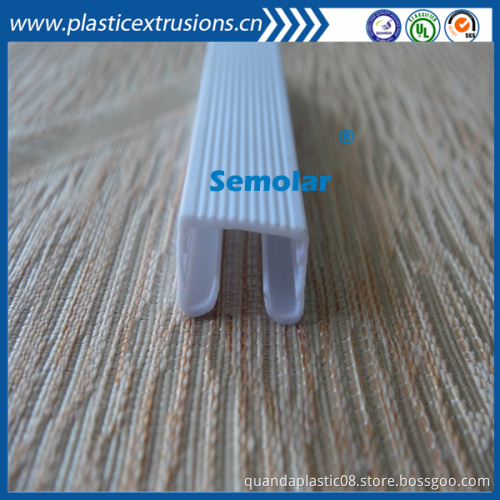

Good electrical PVC Profile

USD5

500-49999 Kilogram
USD100

≥50000 Kilogram

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 500 Kilogram

Min. Order:: 500 Kilogram

Delivery Time:: 20 Days

Transportation:: Ocean, Air

Port:: SHENZHEN, YANTIAN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	500T/month
Supply Ability:	500T/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	SGS
Transportation:	Ocean,Air
Port:	SHENZHEN,YANTIAN

Product Description

Lasenic® Rigid PVC Technical Property Data Sheet
①raw material description
Standard grade:	Extrusion grade		Appearance color:	Gray
Application:	Processing material , rods, plates, sheets, tubes.It was used for chemical resistant storage tanks, tubes and other containers; construction lumber, doors and windows, water tubes, siding, flooring, duct; anti-corrosion equipment supports, zero components.
Characteristics:	Good corrosion resistance, high hardness, high strength, anti-ultraviolet (anti-aging), fire retardant (self-extinguishing), reliable insulation properties, the surface is smooth, non-absorbent, non-deformation, easy to process.

②raw materials technical data
Property item		Test conditions(status)	Test method	Test data	Unit
I.Physical properties
Density		┄	ASTM D792	1.4~1.6	g/cm3
Shrinkage		┄	ASTM D955	0.6-1.0	%
Equilibrium water absorption		23°C 60%RH	ASTM D570	0.2	%
Flammability class		┄	UL94	V-0	Class

Ⅱ.Mechanical properties
Impact strength(No notch)		┄	ASTM D256	450	J/m
Impact strength(notched)		┄	ASTM D256	2.2~10.6	KJ/m2
Tensile strength		┄	ASTM D638	50	MPa
Compression strength		┄	ASTM D695	20.5	MPa
Flexural strength		┄	ASTM D-790	70	MPa
Flexural modulus		┄	ASTM D-790	2400	MPa
Elongation at break		┄	ASTM D638	10	%
Hardness- Shore D		┄	DIN 53505	95	D
Friction coefficient		┄	DIN 53375	0.4	┄

Ⅲ.Thermal properties
Heat deflection temperature-HDT/A		┄	ASTM D648	70	℃
Max.working temperature-Interrupted		┄	UL746B	90	℃
Max.working temperature-long time		┄	UL746B	60	℃
Melting point		┄	ASTM D2117	120	℃
Brittle temperature		┄	ASTM D746	-70	℃
Thermal conductivity		23°C	ASTM D177	0.16	W/(m*k)
Coefficient of linear thermal expansion		┄	ASTM D696	8	×10-5K-1

Ⅳ.Electrical properties
Dielectric constant		┄	ASTM D150	3.2~3.6	106Hz
Dielectric dissipation		┄	ASTM D151	0.02	106Hz
Dielectric strength		┄	ASTM D149	30	KV.mm
Volume resistivity		┄	ASTM D257	1013~1015	Ω*cm
Surface resistivity		┄	ASTM D257	1015	Ω
Arc resistant		┄	ASTM D495	70	Sec

NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m
STATEMENT:
NOTE: The information contained herein are typical values intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. Quanda will not provide any legally binding guarantee of certain properties, or any suitability.
