AS NZS 3112 Australian New Zealand Gauges for plugs and sockets

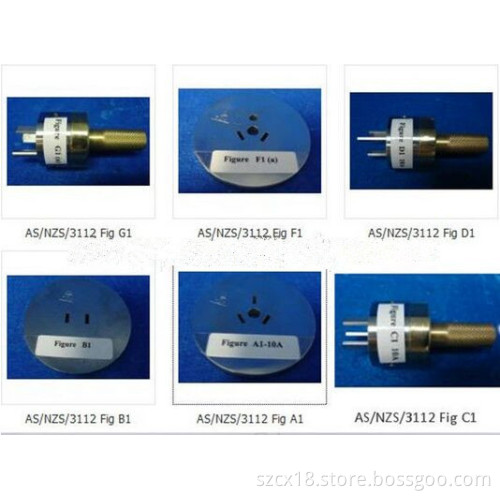

| Name | Description | QTY. |
| AS/NZS3112 figure3.1/10A/15A | Depth of No-contact test gauge | 1 |
| AS/NZS3112 figure3.6 Max 10A |
Device for checking the resistance to lateral strain (Three Pin Gauge) |
1 |
| AS/NZS3112 figure3.7 Max 10A | Device for checking the resistance to lateral strain (Two Pin Gauge) | 1 |
| AS/NZS3112 figure A1 | Gauge for three –Pin Flat-Pin Plugs | 1 |
| AS/NZS3112 figure B1 | Gauge for Two-Pin Flat-Pin Flat- Pin Plugs with Parallel Pins | 1 |
| AS/NZS3112 figure C1 | Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test. | 1 |
| AS/NZS3112 figure D1 | Three-pin test plug with flat pins for abnormal insertion test . | 1 |
| AS/NZS3112 figure E1 |
Plugs and socket-outlets for use in extra-low voltage circuits |
1 |
| AS/NZS3112 figure G1 | Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test | 1 |
| Total quantity |
9 |
|
