Laboratory Test Instrument Salt Spray Test Chamber
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 4 Days
- Transportation:
- Ocean, Land, express
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000pcs /month |
| Supply Ability: | 1000pcs/month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,express |

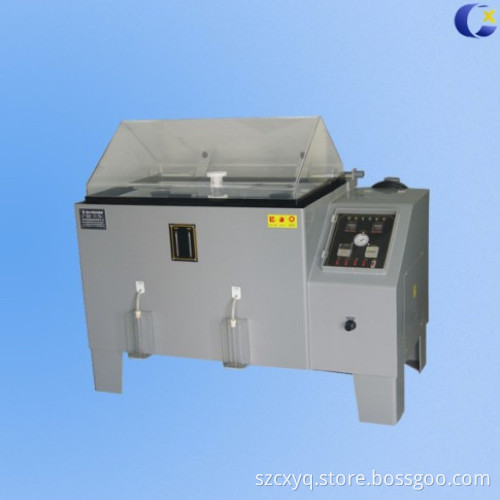

Laboratory Test Instrument Salt Spray Test Chamber
Key words: Salt Spray test chamber, salt spray chamber
1.Technical parameters:
| Model | CX-60 | CX-90 | CX-120 |
|
Inner Box Size (W*D*H) mm |
600*450*400 | 900*600*500 | 1200*800*500 |
| Outsider Box Size(W*D*H) mm | 1070*580*1030 | 1380*800*1150 | 1700*950*1210 |
| Testing capacity | 108L | 270L | 480L |
| Power | 220V,1.5KW ,50HZ | 220V,1.5KW ,50HZ | 220V,3KW,50HZ |
2. Technical Features:
-
Box material : Local temperature and humidity inside and outside the box are used for A-level
gray high-corrosive PVC, for salt spray, copper acetate, and other test
specification test.
- Saturation pressure barrel : It uses the A-level German imports of gray PVC material.
- Laboratory Racks: It uses sophisticated Class A gray PVC material designed "V" shape
- Long, products tested by the 15 ° -30 ° angle be adjusted.
- Laboratory cover:It uses a 5mm thick transparent imported high toughness PVC board
- bending method designed to cover 100 degree ridge-type transparent
- With power failure memory function of time, so after the original call time to complete
- The remaining time of the experimental work, with a double over-temperature protection,
- Water shortage warning, ensure safety
- Technical basis:According to JIS, ASTM, CNS, GB standard parameter setting operation
|
|
Standard Laboratory |
Air pressure barrel |
|
Salt spray test |
NSS ,ACSS |
35°C±1°C 47°C±1°C |
|
Corrosion test |
CASS |
50°C±1°C 63°C±1°C |
3. Systems:
•Heating system
It uses steam heating, heating speed, reduce the standby time, when the temperature reached, the thermostat automatically switches the state, the temperature accuracy, less power consumption
•Control system
High-precision temperature controller, Japan OML timer to control the time, the overall temperature error of ± 1°c
