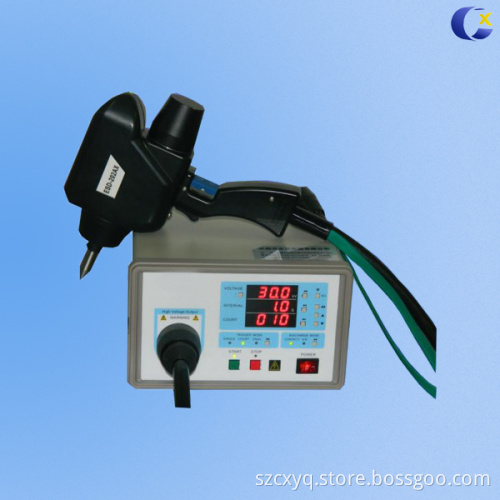

IEC61000-4-2 electrostatic discharge generator ESD
20KV 30kV electrostatic discharge generator ESD
ESD simulator is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322. The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance
|
Product Model |
ESD-202AX |
ESD-203AX |
|
|
Output Voltage |
0.1~20kV±3% 0.1~30kV±3%
|
||
|
Polarity |
Positive/Negative
|
||
|
Energy Storage Capacitance |
150pF±10% (Replaceable) |
||
|
Discharge Resistor |
330Ω±5% (Replaceable) |
||
|
Current Rise Time |
0.6~1ns |
||
|
Testing Functions |
Single, Count, 20pps, Air, Contact, IEC level |
||
|
Trigger Mode |
Host rising automatically trigger, voltage scanning |
||
|
counter |
0~999 (for discharge count) |
||
|
Discharge interval |
0.05s)0.1~9.9s (when 20pps mode, the discharge interval of 0.05s)
|
||
|
Air-gap discharge voltage holding time |
More than 5 seconds |
||
|
Use environment |
Ambient temperature: 10 c ~35 c humidity: 30%~60% |
||
|
Working Power |
AC85~265V,50/60Hz |
||
