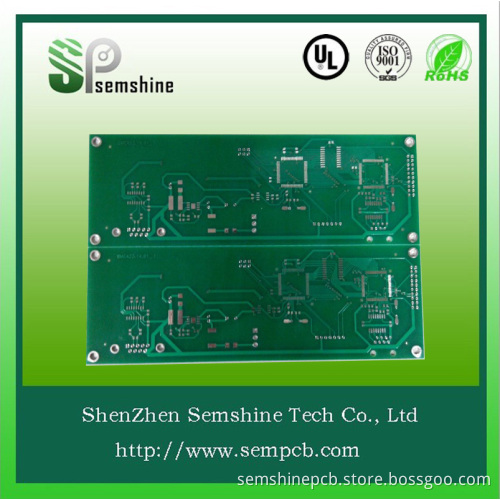

Fr4 double layer PCB with green solder mask
- Payment Type:
- paypal
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | paypal |
| Incoterm: | FOB |
| Certificate: | ISO Rohs |
Product Description
Product Description
| 1 | Description | PCB Specification |
| 2 | Material | FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum |
| 3 | Layer | 1-20 |
| 4 | Board Thickness | 0.2mm- 4.0mm |
| 5 | Board Thickness Tolerance | +/-10% |
| 6 | Copper thickness | 17.5um-175um (0.5oz-5oz) |
| 7 | Min Trace Width | 0.15mm |
| 8 | Min Space Width | 0.15mm |
| 9 | Min Drilling Dia | 0.2mm |
| 10 | PTH copper thickness | 0.4-2mil(10-50um) |
| 11 | Tolerance of Etching | ±1mil(±25um) |
| 12 | V-cut angle | 25°,30°,45°,60° |
| 13 | Pearl Strength of line | ≥ 6lb/in(≥ 107g/mm) |
| 14 | Impedance control and tolerance | 50Ω±10% |
| 15 | Twist&Wrap | ≤ 0.5% |
| 16 | Soldermask | Green, Red, Blue, White, Black, Yellow |
| 17 | Surface Finish/Plating | HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG |
| 18 | Certificate | ROSH. ISO9001,SGS, UL Certificate |
| 19 | File | Protel 99se/P-CAD/Autocad/Cam350 |
| 20 | Inner packing | Vacuum packing,Plastic bag |
| 21 | Outer packing | Standard carton packing |
4.PCB or PCB Assembly files requests
1. Gerber files of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution.
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Schematic if necessary
Our Advantage
1.Our professional engineer can provide PCB design, BOM.
2.Quick and econimic delivery term.
3.Provide PCB & PCBA prototype, and medium&low volumn quick board services.
4.Component purcharsing, SMT&PCBA one-stop source.
5.Two-hours quote response, 24 hours quick-turn produce.
6.FR4 Double-sided and Alum single-sided sample in 24 hours.
