250KW Two - Roller Cold Rolling Mill Machinery , Steel Pipe Rolling Mill Equipment
LG120 cold pilger mill for making seamless steel pipes
Quick Detail:
Type: Cold Pilger Mill
Brand name: Hengli
Model number: LG120
Input material: common carbon steel, alloy, nonferrous metal
After-sales service provided: overseas service available
Place of Origin: Jiangsu, China (Mainland)
Used in: the field of Carbon pipes,Non-ferrous metal pipes,and so on.
Description:
Applications:
LG120 two-roller cold rolling mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.
Specifications:
|
No. |
Name |
LG120 |
|
|
1 |
Shell OD(mm) |
115~195 |
mm |
|
2 |
Shell WT(mm) |
2.5~18 |
mm |
|
3 |
Shell Length(mm) |
8 |
mm |
|
4 |
Finished tube OD(mm) |
89~168 |
mm |
|
5 |
Finished tube WT(mm) |
2~16 |
mm |
|
6 |
Finished tube Length(m) |
25 |
m |
|
7 |
Stroke Frequency of Mill time/min |
40~70 |
time/min |
|
8 |
Stroke of Rolling mill bus(mm) |
1103 |
mm |
|
9 |
Feeding Length(mm) |
2~10 |
mm |
|
10 |
rotation angle |
42° |
|
|
11 |
Roll Diameter(mm) |
580(490) |
mm |
|
12 |
Power(KW) |
250 |
KW |
|
13 |
Size (L×W×H) |
48×6×3 |
m |
Competitive Advantage:
We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials.
250KW Two - Roller Cold Rolling Mill Machinery , Steel Pipe Rolling Mill Equipment

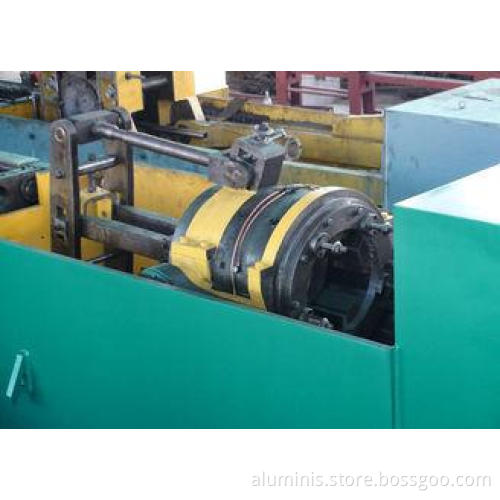

Reference photos for main equipment:
