Galvanized Simple Steel Slitting Line 9CrSi , 1250mm Width
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China (Mainland) |
|---|
Galvanized Simple Steel Slitting Line 6Crw2Si, 1250mm Width Of Coil Plate
Quick Detail:
1) Thickenss: 0.3mm-1.5mm
2) Width: 500mm-1250mm
3) Capacity: 6T
4) Speed: 0-30m/min
5) Maximum slitting slices:10 pieces
6) Composed device: uncoiler , slitter, recoiler
Technical parameters
| Application | CRS/ Galvanized steel/ PPGI and so on |
| Coil thickness | 0.3-1.5mm |
| Coil width | 1250mm |
| Coil I.D | 480-510mm |
| Coil O.D | 1400mm |
| Slitting shaft diameter | 120mm |
| Slitting blades | 120mmx220mmx10mm |
| Slitting blades material | 6CrW2Si |
| Slitting Blade hardness | HRC58-60 |
| Recoiler I.D | 508mm |
| Power | 380V /50HZ /3PH |
| Tolerance of width error | ≤±0.05mm/2m |
| Line speed | 0-40m/min |
| Area of the whole line | 18mx6m |
| Production orientation | From left to right |
Main Components of the slitting line
| Decoiler | 1 Unit |
| Side guide device | 1 Unit |
| Slitter | 1 Unit |
| Scrap winder | 1 Unit |
| Tension stand | 1 Unit |
| Recoiler | 1 Unit |

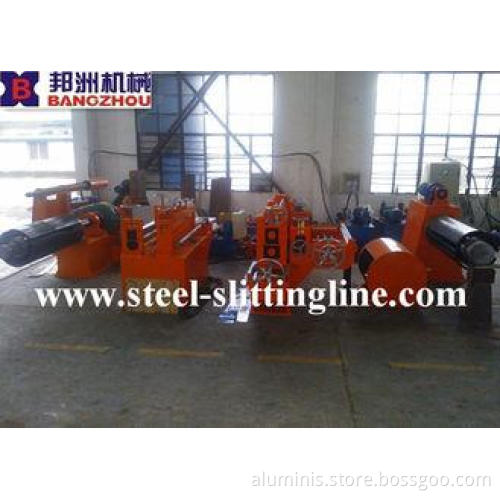

From coil to coils and cut to desired width.
Competitive Advantage
- convenient to operate
- accurate precision of shearing
- high ratio of performance to price
- tidy recoiling
Customer feedback
All we can guarantee is our quality and our service. So even after sales, we always keep in touch with our customers to know our machines situation.
When we hear our machine is good in working, that is the comfort for our working also make us feel much meaningful .
If you need the high speed and automatic slitting line, here our company is !
If you need simple, need special slitting line, we can also meet your requirements!
