304 stainless steel Bi - directional Tripod Turnstile Gate
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|
304 stainless steel Bi - directional Tripod Turnstile Gate Systems with CE approved
Quick Details
- Size:1200*280*1000mm
- Thick of steel:1.5mm
- Material:304stainless steel
- Rod length:510mm
- Design and size can be customized
Product Description
The shape like a butterfly Overall plate structure, the box materials using standard 304 stainless steel, streamline bevel angle structure,bottom is equipped with the base during the casing within a professional guide tank. Can be installed in indoor, outdoor with shed, applicable to restrict the passing rate of the place, has the count, attendance, current limiting function.

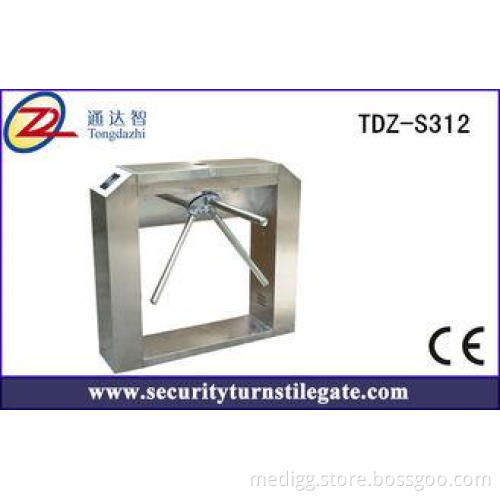

TDZ-S312 Tripod Turnstile Gate Picture
Functions& Features
1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function: Red and green light prompt the passing information.
4. The programmable gates control state, with a variety of operating modes you can choose, you can set a
one-way or two-way control
5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.
6. Power failure emergency function after power channel automatically open, closed automatically after
power-on, to meet the special needs of the user and the fire safety requirements
7. The control panel with counting function, LED digital display function (optional)
8. The standard input and output interface, is the best choice for system integrators
9. Sound, light alarm function: with trespassing, trailing alarm
10. Scour protection function ,when the gate signal is not received, the stick is automatically locked
11. Fault detection and alarm function, user-friendly maintenance and use
Technical Parameters
| Framework | 304 standard stainless steel |
| Dimensions | 1200*280*1000 mm |
| Channel Width | 600 mm |
| Maximum endurance brake lever | 80 kg |
| Operating Mode | one-way or two way control |
| Power supply voltage | AC220 ± 10%V, 50 HZ |
|
Motor |
0.5NM/24V(Fully Automatic) |
| Interface | standard RS485/distance≤1200m or TCP/IP. |
| Gate opening time | 0.2 second |
| Transit speed | 30-40 persons per minute |
| Working environment | indoor or outdoor |
| Temperature | -10 Celsius to 50 Celsius |
| Relative humidity | :≤90% no condensation |
|
Colour |
Stainless Steel Brushed / Powder Coating(Optional) |
| Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
TDZ-S312 Tripod Turnstile Project case
FAQ
Q:On power,but turnstile gates take no action
1)Q: Zero light of the control board and the power indicator light turns red,normal, but motor does not move
A.Detecting the motor terminals MA, MB at both ends if there is voltage output (DC24V).
If there is output, detect whether electrical connection is sealed off or not;Check whether motor are
damaged or not,red and black wire of the motor connected directly to battery;
B.If the above checks are normal,movement may exist stuck state,first access red and black cable of
motor to battery,let the arm back to zero,then recovery the red and black wire of motor,with a manual switch test.
If arm will have action,but not smooth,it means movement has hit damage,should repair movement.
2) Zero position of control board indicator and power indicator turn red.Oneyellow LED
is light in left in place or right in place,
shows zero limit board has problem,need to change zero limit board.
