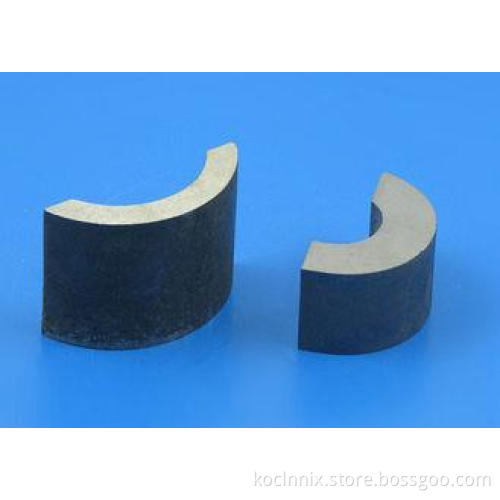

Horseshoe Cast Alnico Magnet , Semi-circle Magnets For Magnetic Motors
Quick Detail:
1. Comparatively high magnetic properties
2. Horseshoe Magnetized
Applications:
Motors
Specifications:
|
Physical Properties of Cast Alnico |
|
|
Curie Temperature (℃) |
760-890 |
|
Max. Operating Temperature (℃) |
450-550 |
|
Resistivity (μohm.cm) |
47-54 |
|
Hardness (Hv) |
520-630 |
|
Density (g/cm³) |
6.90-7.30 |
|
Relative Recoil Permeability (μrec) |
1.70-4.70 |
|
Saturation Field Strength (kOe,kA/m) |
2.7-6.3/215-500 |
|
Temperature Coefficient of Br (%/℃) |
-0.025 ~ -0.02 |
|
Temperature Coefficient of iHc (%/℃) |
+0.01 ~ +0.03 |
Competitive Advantage:
1. High Temperature resistance
2. Comparatively high magnetic properties
3. Dimensional Stability
4. Extented temperature and time Stability
Customized service as well as OEM, just let us know your request or show us your drawings, we will provide high quality and best service.
