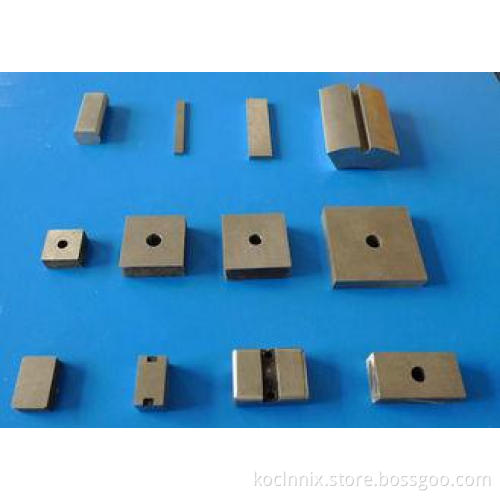

Alnico 5DG Cast Alnico Magnet Blocks , Rectangular Magnets For Magnetic Chucks
Quick Detail:
1. Comparatively high magnetic properties
2. Advanced techniques in producing Alnico 5DG(LNG52) and Alnico 5-7 (LNG60) Blocks
3. Tight tolerance of thickness as +/-0.01mm
Applications:
Electronic Perament Magnetic Chuck
Magnetic Clamp System
Magnetic lifter
Sensitive Relays and transformers
Holding magnets
Instruments
Specifications:
|
Length (MM) |
Width(MM) |
Height (MM) |
|
10-100 |
10-50 |
3-50 |
|
150-200 |
50-100 |
20-100 |
|
Physical Properties of Cast Alnico |
|
|
Curie Temperature (℃) |
760-890 |
|
Max. Operating Temperature (℃) |
450-550 |
|
Resistivity (μohm.cm) |
47-54 |
|
Hardness (Hv) |
520-630 |
|
Density (g/cm³) |
6.90-7.30 |
|
Relative Recoil Permeability (μrec) |
1.70-4.70 |
|
Saturation Field Strength (kOe,kA/m) |
2.7-6.3/215-500 |
|
Temperature Coefficient of Br (%/℃) |
-0.025 ~ -0.02 |
|
Temperature Coefficient of iHc (%/℃) |
+0.01 ~ +0.03 |
Competitive Advantage:
1. High Temperature resistance
2. Comparatively high magnetic properties
3. Dimensional Stability
Customized service as well as OEM, just let us know your request or show us your drawings, we will provide high quality and best service.
