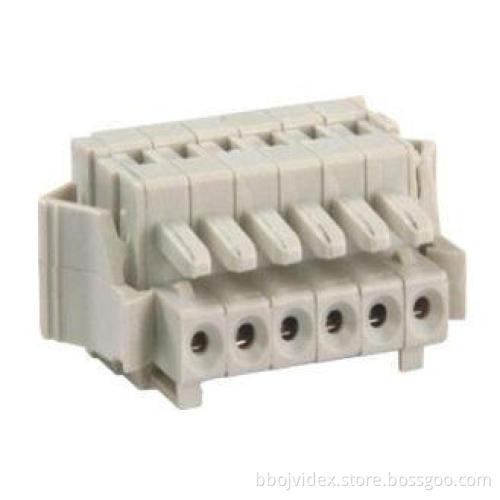

Pitch 3.5mm 250V 10A 24 -16 AWG Female MCS Connector with Locking Device
Quick details
2-24 Female Connectors With Locking Device
Pitch 3.5mm/0.138in.
300V 10A
Wire Range 0.2-1.5mm2/24-16AWG.
2-24 Female Connectors With Locking Device
Order No.:435106/050 (Light-Grey)
◆as PCB Connectors,
◆ as feed-through plug connector,
◆ as plug connectors on rail-mounted terminal blocks,
◆ as plug-in connection for flying leads for different types of assembly.,
◆ Applied in PCBs, heat pump controller,the door control of a lightrail.
|
Article: |
2-24 Female Connectors With Locking Device |
|||
|
Pitch: |
3.5mm/0.138in |
|||
|
|
IEC |
UL |
CSA |
|
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
10A |
10A |
10A |
|
|
Wire Range |
0.2-1.5mm2/24-16AWG |
|||
|
Available Poles: |
2-24 |
|
|
|
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
2.5KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Light-Gray |
|||
|
Packing: |
100PCS |
|||
