750V 73A Insulated UK10N Ground Screw clamp Terminal Block
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang China (Mainland) |
|---|

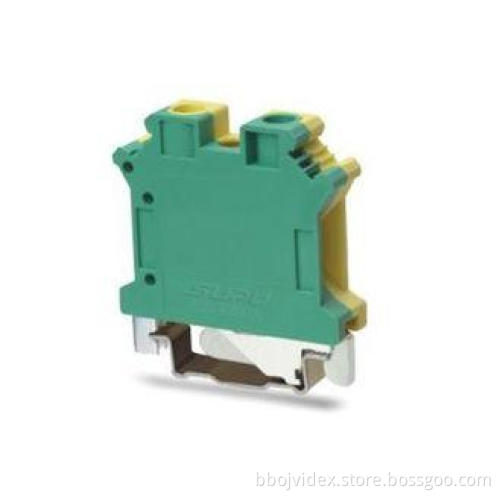

750V 73A Insulated UK10N Ground Screw clamp Terminal Block Green Yellow
Quick details
UK16N Screw Ground Terminal Block
Wire Range 0.5-16.0 mm2/24-6AWG
800V 76A 600V 65A 750V 73A.
PA66 Insulation Material
Order No.:310903(Green-yellow)
Other Color: 310903 (Green-yellow)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
|
Part Name: |
UK16N Screw Ground Terminal Block |
|||
|
Wire Range: |
0.5-16.0 mm2/24-6AWG |
|||
|
|
IEC |
UL |
CSA |
EN50019 |
|
Rated Voltage: |
800V |
600V |
600V |
750V |
|
Rated Current: |
76A |
65A |
65A |
73A |
|
Size (mm/in): |
47/10.2/42.5 mm |
|||
|
Strip length (mm/in): |
10mm/0.39in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
screw-clipping |
|||
|
Entry Type: |
Side-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Green-yellow |
|||
|
Packing: |
100PCS |
|||
|
Picture |
Part Name |
Order Nr. |
|
|
End Plate |
302101 (Gray) |
|
|
Insertion Bridge |
302312 |
