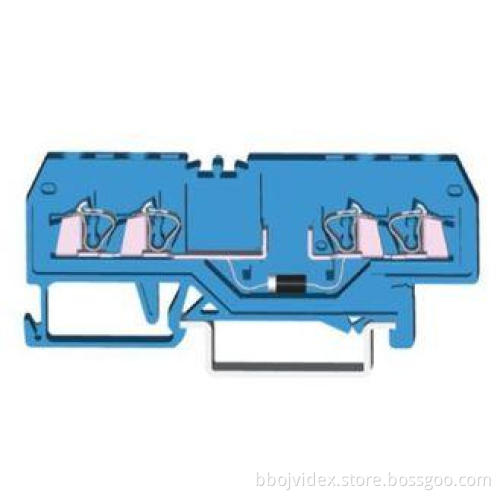

800V 18A Power Distribution Spring Cage Terminal Block , Front-Entry Type.
Quick details
1*2 Conductor Through Terminal Block
Wire Range 0.2-1.5mm2/24-16AWG
800V 18A 600V 10A
Front-entry type
Order No.:215941 (Type A, BLue).
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum)
Specifications:
|
Article: |
1*2 Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-1.5mm2/24-16AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
18A |
10A |
10A |
18A |
|
Size (mm/in): |
4×73×27mm/0.157×2.87×1.06 in |
|||
|
Strip length (mm/in): |
8-9 mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Blue |
|||
|
Packing: |
100PCS |
|||
