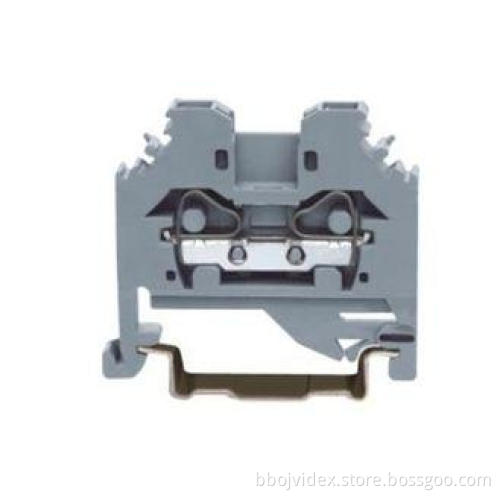

Side-entry 24 -10 AWG 600V 40A Spring Cage Terminal Block ,
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang China (Mainland) |
|---|
Side-entry 24 -10 AWG 600V 40A Spring Cage Terminal Block , 12 - 13 mm Strip
Quick details
2-Conductor Through Terminal Block
Wire Range 0.2-6.0mm2/24-10AWG
800V 41A 600V 25A 40A.
Side-entry Type
Order No.:206901(Gray)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
Specifications:
|
Article: |
2-Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-6.0mm2/24-10AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
41A |
25A |
40A |
41A |
|
Size (mm/in): |
8×46.5×37mm/0.315×1.83×1.46 in |
|||
|
Strip length (mm/in): |
12-13 mm/049in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
Spring-clipping |
|||
|
Entry Type: |
Side-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Blue |
|||
|
Packing: |
100PCS |
|||
Attachment:
|
Name |
Order No. |
|
End-and Intermediate |
204161(Gray)204162(Orange) |
|
Adjacent Jumper |
206301 |
|
Protective Warning Marker |
206701 |
