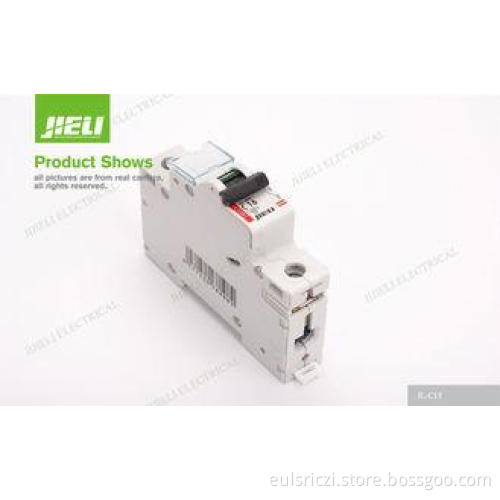

Indoor Copper Parts Design 2 Pole, C32 Miniture Circuit Breaker
Quick Detail:
Model: JIELI
Parts: cooper/brass parts
Cover: fire proof
Point: silver /cooper point
Poles: 1P,2P,3P,4P,1P+N,3P+N
Breaking capacity: 4.5KA, 6KA
Current: 1A-63A
Description:
JL-C15 Miniature circuit breaker is mainly suitable for overload and short circuit protection.It is especially used for illumination and distribution in industry and commerce,etc.It has pleasing out look&high breaking capacity, mini industries .
Miniture Circuit Breaker is within the circuit of AC 50/60Hz,rated voltage of single pole up to 240V,two,three or four poles up to 415V.
JL-C15 Miniture Circuit Breaker can also be used for an infrequent change over of the circuit and illumination under normal condition.
Specifications:
| Item name : | JL-C15 |
| Standard : | IEC60898/GB10963 |
| Product Certifications : | ISO900,CCC,CE,CB,GMC,TUV,RoHS |
| Product Function : | Short circuit protection,Over current protection |
| Rated current(A) : | 2-63 |
| No of pole : | 1P,2P,3P,4P,1P+N,3P+N |
| Rated voltage(V) | 230/415V |
| Rated frequency(Hz) : | 50/60 |
| Environment temperature : | -35~70°C |
| Magnetic tripping curve: | B(3-5In),C (3-10In),D(10-20In) |
| Biggest wiring ability : | 25mm2 |
| Magnetic tripping curve : | B(3-5In),C(5-10In),D(10-20In) |
| (ICS) Operation capacity of short circuit : | 6000 |
| Mechanical life : | 10000 |
| Product weight: | 110(1P),220(2P),330(3P),440(4P) |
