160A Electrical Moulded Case Circuit Breaker 4 Pole 50Hz /
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang,China(Mainland) |
|---|

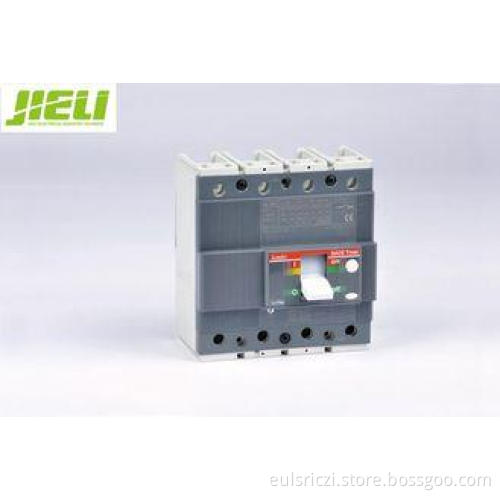

160A Electrical Moulded Case Circuit Breaker 4 Pole 50Hz / 60Hz CE ISO
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
JM7 moulded case circuit breaker |
|
Type: |
Moulded Case Circuit breaker |
Poles Number: |
4 |
Crust color: |
Gray |
|
Standard: |
IEC947-2 |
Certificate: |
CE,ROHS, CB,ISO9001 |
Quality: |
A |
|
Price: |
competitive |
Rated current: |
160A |
Rated voltage: |
400V |
Description:
JM7 moulded case circuit breaker mccb /160a is suitable for circuit AC 50Hz/60Hz,rated voltage up to AC 660V,rated operating current up to 250A.
JM7 moulded case circuit breaker features normal structure,reliable performance,high breaking capacity,used for power distribution and protecting the circuit and electrical equipment against overload and short circuit.
JM7 moulded case circuit breaker complies with standard of IEC60947-2.
Specifications:
|
Rated current of frame size lnm(A) |
100 |
||
|
Type |
JM7 moulded case circuit breaker |
||
|
Rated current ln(A) |
10,16,20,25,32,40,50,63,80,100 |
||
|
Number of poles |
3 |
4 |
|
|
Rated insulation voltage Ui (V) |
AC690 |
||
|
Rated operating voltage Ue (V) |
AC400 |
||
|
Rated impulse withstand voltage Uimp (V) |
8000 |
||
|
Arcing distance(mm) |
≤50 |
||
|
Rated ultimate short-circuit |
AC400V |
15 |
|
|
AC230V |
30 |
||
|
Rated service short-circuit |
AC400V |
20 |
|
|
AC230V |
45 |
||
|
Operational performance |
With current |
1000 |
|
|
Without current |
7000 |
||
|
Outline dimensions(mm) |
W |
75 |
100 |
|
L |
130 |
||
|
H |
68 |
||
About our company-JIELI:
1. JIELI Electrical is abbreviation for" Alliance of JIELI Electrical Industry", with JILI brand and
ICEDC brand.
2. JIELI Electrical have 29 members and more than 2000 employers, all of the plants area
are about 50000 square meters.
3. JIELI Electrical devoted in producing low-voltage circuit breaker and other related products. .
4.At present, JIELI main products MCB,MCCB,RCCB, Distribution box, AC contactor, Relay,
Switch and more than thousands electrical goods spare parts.
