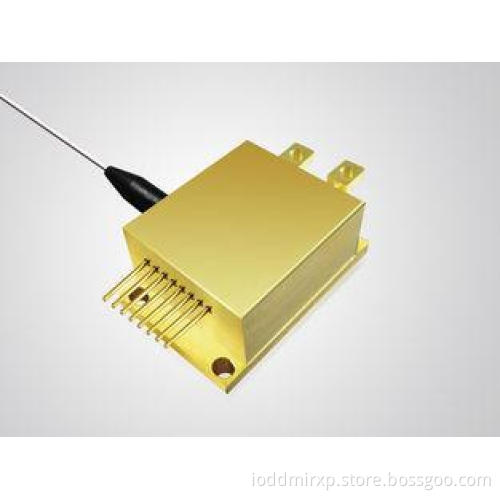

30W Fiber Coupled 808nm Diode Laser Module With 400μm 0.22NA Fiber
The high power multi-emitter 808nm diode lasers are designed for solid-state laser pumping and medical applications. The features are fiber detachable, standard SMA-905 connector and compact packaging. With BWT’s proprietary optical design, both modules of this series have the features of high power and high beam quality, thus a main component in application in the two fields.
This detachable 808nm diode laser packaging with 6 footprints is available at 15W and 30W, standard fiber coupling with 400-micron core diameter. Well-distributed and top-head light spot is the key features of this device, which is an ideal component for laser pumping.
Features:
- 15W,30W output power
- Standard fiber coupling for 400μm core diameter
- 0.22N.A.
- 808nm wavelength
- Compact package
Options:
- 650nm aiming beam
- Photo diode (PD)
- Fiber detector
- Thermistor
- TEC
Application:
- Medical Application
|
Specifications(25℃) |
Symbol |
Unit |
K808DANFA-15.00W |
K808DANFA-30.00W |
|
Optical Data |
CW-Output Power |
Po |
W |
15 |
30 |
|
Center Wavelength |
λc |
nm |
808 |
||
|
Tolerance of λ |
- |
nm |
±3,±10 |
||
|
Spectral Width (FWHM) |
△λ |
nm |
<3 |
||
|
Temperature Drift of λ |
- |
nm/℃ |
~0.3 |
||
|
Connector Data |
Fiber Core Diameter |
Wc |
µm |
400 |
|
|
Fiber Numerical Aperture |
N.A. |
- |
0.22 |
||
|
Fiber Connector |
- |
- |
SMA-905 |
||
|
Electrical Data |
Operating Current |
Iop |
A |
10 |
|
|
Threshold Current |
Ith |
A |
1.4 |
||
|
Conversion Efficiency |
η |
% |
44 |
||
|
Slope Efficiency |
ηD |
W/A |
1.9 |
3.8 |
|
|
Operating Voltage |
Vop |
V |
3.8 |
7.8 |
|
|
Reverse Voltage |
Vre |
V |
4 |
8 |
|
PD Data |
Current |
Imo |
mA |
0.2-2.0 |
|
|
Aiming Beam Data |
Output Power |
Pa |
mW |
>2 |
|
|
Wavelength |
la |
nm |
650±10 |
||
|
Voltage |
Va |
V |
2.2(1) |
||
|
Current |
Ia |
mA |
<30 |
||
|
TEC |
Max current |
It |
A |
6.0 |
|
|
Max voltage |
Vt |
V |
9.8 |
||
|
Thermistor(2) |
Thermistor |
Rt |
(K Ω)/β(25℃) |
10±5%/3477 |
|
|
Others |
Operating Temperature |
Top |
℃ |
10~30 |
|
|
Storage Temperature |
Tst |
℃ |
-20~+70 |
||
|
Expected Lifetime |
MTTF |
h |
>10,000 |
||
|
Dimensions (fiber and connector not included) |
- |
mm |
52.0×35.0×20.1(Without TEC) |
52.0×35.0×20.1 (Without TEC)- |
|
|
52.0×35.0×22.1(WithTEC) |
|||||
|
Lead Soldering Temperature |
Tis |
℃ |
260(10 sec.) |
||
- Optional 5V DC input.
