0.22N.A. High Power Pump Diode Laser Module 30W with 915nm
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Beijing China(Mainland) |
|---|

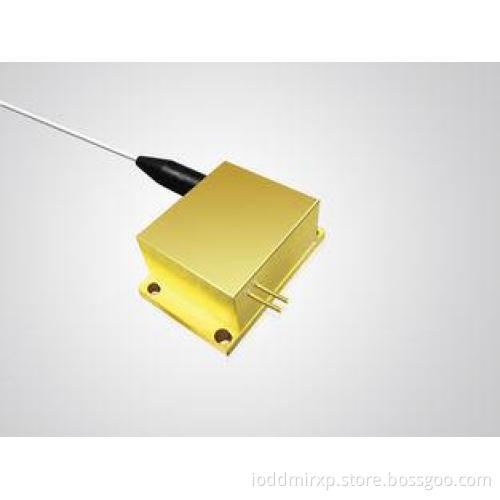

915nm 30W Wavelength 0.22N.A. High Power Pump Diode Laser Module K915DA3RN-30.00W
Features:
- Output power 30W
- Fiber core diameter 105µm
- 0.22N.A.
- 915nm, 940nm, 976nm Wavelength
- 1030nm-1200nm feedback protection
Applications:
- Laser pumping
- Medical use
- Material processing
|
Specifications(25℃) |
Symbol |
Unit |
K915DA3RN-30.00W |
|
|
Optical data |
CW-Output Power |
P0 |
W |
30 |
|
Center Wavelength |
λc |
nm |
915, 940, 976 |
|
|
Tolerance of λ |
- |
nm |
±3, ±10 |
|
|
Spectral Width (FWHM) |
△λ |
nm |
<5 |
|
|
Temperature Drift of λ |
- |
nm/℃ |
~0.3 |
|
|
Fiber data(1) |
Fiber Core Diameter |
Wc |
µm |
105 |
|
Numerical Aperture |
N.A. |
- |
0.22 |
|
|
Fiber Connector |
- |
- |
SMA-905 |
|
|
Electrical data |
Operating Current |
Iop |
A |
12 |
|
Threshold Current |
Ith |
A |
0.5 |
|
|
Conversion Efficiency |
η |
% |
48 |
|
|
Slope Efficiency |
ηD |
W/A |
2.6 |
|
|
Operating Voltage |
Vop |
V |
5.4 |
|
|
Reverse Voltage |
Vre |
V |
7.5 |
|
|
Feedback Isolation |
Wavelength Range |
λ |
nm |
1030-1200 |
|
Isolation |
- |
dB |
>30 |
|
|
Others |
Operating Temperature |
Top |
℃ |
10~30 |
|
Storage Temperature |
Tst |
℃ |
-20~+80 |
|
|
Expected Lifetime |
MTTF |
h |
>100, 000 |
|
|
Dimensions (fiber and connector not included) |
- |
mm |
42.0 x 25.0 x 17.0 |
|
|
Lead Soldering Temperature |
Tis |
℃ |
260(10 sec.) |
|
-
Upon request other fibers available.
