915nm 30W High Power Diode Lasers laser module For Laser Pu
  • 915nm 30W High Power Diode Lasers laser module For Laser Pu
915nm 30W High Power Diode Lasers laser module For Laser Pu

915nm 30W High Power Diode Lasers laser module For Laser Pu

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Beijing China(Mainland)
Product Description
Product Description

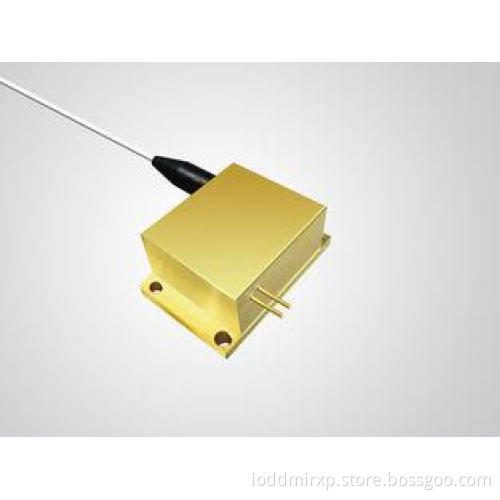

915nm High Brightness Diode Laser For Laser Pumping K915DA3RN-30.00W

Features:

  • 30W output power
  • 105µm fiber core diameter
  • 0.22N.A.
  • 915nm Wavelength
  • 1030nm-1200nm feedback protection

Applications:

  • Laser pumping
  • Medical use
  • Material processing

Specifications(25)

Symbol

Unit

K9XXDA3RN-30.00W

Optical data

CW-Output Power

Po

W

30

Center Wavelength

lc

nm

915, 940, 965,976

Tolerance of l

-

nm

±3,±10

Spectral Width (FWHM)

△l

nm

<5

Temperature Drift of l

-

nm/℃

~0.3

Fiber data (1)

Fiber Core Diameter

Wc

µm

105

Numerical Aperture

N.A.

-

0.22

Fiber Connector

-

-

-

Electrical data

Operating Current

Iop

A

11.5

Threshold Current

Ith

A

0.8

Conversion Efficiency

η

%

48

Slope Efficiency

ηD

W/A

2.6

Operating Voltage

Vop

V

5.4

Reverse Voltage

Vre

V

7.5

Feedback

Isolation

Wavelength Range

l

nm

1030-1200

Isolation

-

dB

>30

Others

Operating Temperature

Top

25±15

Storage Temperature

Tst

-20~+70

Expected Lifetime

MTTF

h

>100,000

Dimensions

(fiber and connector not included)

-

mm

42.0 x 25.0 x 17.0

Lead Soldering Temperature

Tis

260(10 sec.)

(1)Other fibers available upon request.
