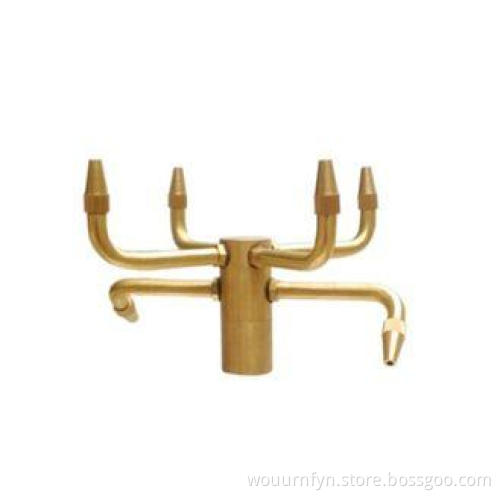

Brass / Stainless Steel Pirouette Water Fountain Nozzles Copper / SS304
Description:
The Pirouette Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.
The Pirouette Nozzle is the one which can rotate while working by the centrifugal force and counterforce of water. It can produce different shapes and effect by changing the number of nozzles and angle.
To use multiple line hydraulic reaction driving nozzle rotate, the curve of the centrifugal forming outward spiral twist in the air, at night under lights mapping playing like a ribbon in the sky.
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| SXnT40 | 80-150 | 8-10 | 2-4 | 1.5-2.5 | 1 1/2" | internal thr. | Ф6 * 4 | 115 | 330 | 1.2 | |
| SXnT25 | 80-150 | 4-6 | 1-3 | 1-1.5 | 1" | Ф4 * 4 | 124 | 200 | 0.7 | ||
* Stainless Steel material should only have 4 arms
Brass and Brass Chromplated Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| SXnT40 | 80-150 | 8-10 | 2-4 | 1.5-2.5 | 1 1/2" | internal thr. | Ф4 * 1,Ф6 * 6 | 115 | 330 | 1.08 | |
| SXnT25 | 80-150 | 4-6 | 1-3 | 1-1.5 | 1" | Ф4 * 1,Ф4 * 6 | 124 | 225 | 0.62 | ||
| SXnT20 | 50-80 | 2-3 | 0.8-1 | 0.6-0.8 | 3/4" | Ф4 * 1,Ф4 * 6 | 120 | 182 | 0.46 | ||
| SXnT15 | 50-80 | 2 | 0.8-1 | 0.5 | 1/2" | Ф4 * 1,Ф3.3 * 6 | 100 | 120 | 0.38 | ||
