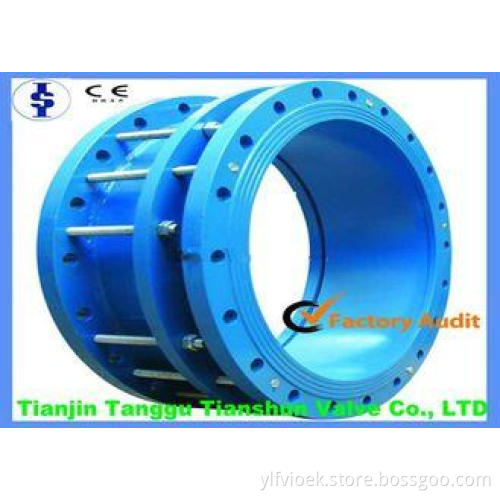

Ductile Cast Iron Double Flanged Dismantling Joint Lever Butterfly Valve Actuator
Product Description
| Name | High quality Ductile Cast Iron Double flanged Dismantling joint | ||||||
| Model NO. | DN50-DN2000 | ||||||
| Brand | TST(Tianshun) | ||||||
| Suitable medium | Water,Waste liquid,Vapor,Food,Medicine,Oils etc. | ||||||
| Apply to standards | DIN, BS, API, MSS, ANSI, JIS, ISO etc | ||||||
| Drving style | Lever , gear , actuator , pneumatic | ||||||
Key Specifications:
- Dismantling joint is a necessary element between pipe/fitting/valves as they are easily adjusted to the water net or removed from it.
- Makes checking and repairing operation without removing the valve from the line.
- Material : Ductile Cast Iron
- Size Range : DN 50mm to DN 1400mm
- Annual capacity : 500 tons
- Coating: Epoxy Coating 250um.
- Bolts and fittings, zinc-based coating
- EPDM gasket sealing, which prevent the joint from damage well.
- Working pressure: PN10, PN16, and PN25
- These dismantling joints are designed to be assembled between two flanges. For assembly on butterfly valves without a flange, please consult us.
-
DN(mm)
D
D1
n-d0
L
Expanding amount
50
165
125
4-18
175
30
65
185
145
4-18
181
40
80
200
160
8-18
182
40
100
220
180
8-18
195
40
125
250
210
8-18
201
45
150
285
240
8-22
210
45
200
340
295
8-22/12-22
217
45
250
395/405
350/355
12-22/12-26
224
4
300
445/460
400/410
12-22/12-26
227
50
350
505/520
460/470
16-22/12-26
233
50
400
565/580
515/525
16-26/16-30
248
50
450
615/640
565/585
20-26/20-30
263
50
500
670/715
620/650
20-26/20-33
297
50
600
780/840
725/770
20-30/20-36
302
50
700
895/910
840
24-30/24-36
317
50
800
1015/1025
950
24-33/24-39
322
60
900
1115/1125
1050
28-33/28-39
324
60
1000
1230/1255
1160/1170
28-36/28-42
344
60
1200
1455/1485
1380/1390
32-39/32-48
395
60
1400
1675/1685
1590
36-42/36-48
405
60
1600
1915/1930
1820
40-48/40-55
384
60
1800
2115/2130
2020
44-48/44-55
380
60
2000
2325/2345
2230
48-48/48-60
380
60
Comny Profile
We, Tianjin Tanggu Tianshun Valve Co., Ltd., have manufactured butterfly valves for more than 10 years. We have manufactured kinds of butterfly valves for your choose including Wafer, Lug, U type, D341(centerline double flanged butterfly valve), D343(double eccentric flanged butterfly valve), Grooved end type, Double disc wafer check valve, Flapper check valve, Eccentric plug valve, Half-lug or no-lug type, Dismantling joint etc. You also could choose the operation mode like manual ( lever, handweel or gearworm), electric and pneumatic actuator and so on.
