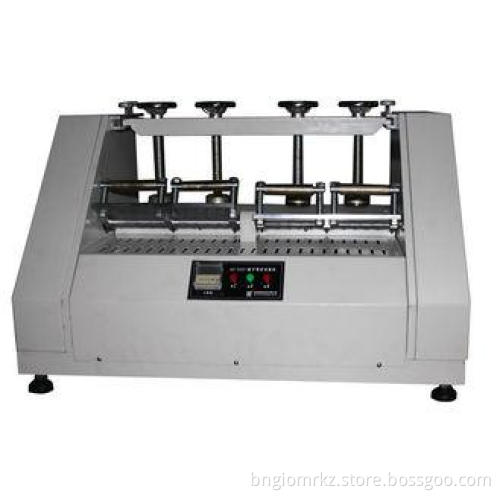

Bending Resistance Tester For Shoes With Lcd Displayer With Speed Of 100 r / min
1.Quick Details
|
Alternative name |
bending resistance test machine for shoes |
|
Function |
The tester is applied to test bending resistance of finished shoes, shoe sole |
|
Principle and method |
Fix the heel parts of shoes, lift front parts and do successive bending |
|
Weight |
157kg |
|
Volume |
77×50×60cm |
|
Corresponding test standard |
SATRA TM92 |
2.Description
This tester is specialized in testing flexing durability of finished shoes and shoe sole.
The flexing shoe tester is by fixing the heel parts of shoes and lifting the front parts to simulate the heel landing when walking .
Successive flexing after certain time at certain frequency and certain angle, check the bending resistance capability or cracking degree.
3.Features
a. Elegant and nice structure design
b. Easy to operate
c. Excellent equipment to check quality of a shoes
4.Specifications
|
Model |
GX-5021-B |
|
Specimen |
4 |
|
Angle of bending |
30°, 45°, 60°, 90 |
|
Speed |
100±5 C.P.M |
|
Counter |
LED display; 0~999,999 |
|
Motor |
DC1/2HP |
|
Power |
AC220V,3A |
