ISO Standard 5 Stations Footwear Uppers Cutting Resistance
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

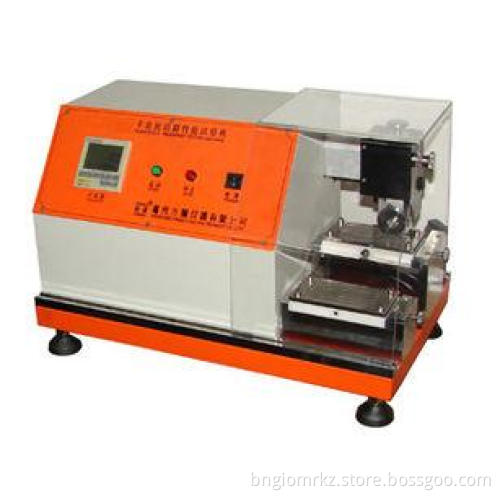

ISO Standard 5 Stations Footwear Uppers Cutting Resistance Testing Equipment
Quick Details
|
Alternative name |
Uppers anti-cutting tester |
|
Function |
Test anti-cutting strength of shoe uppers, gloves |
|
Type |
Table type |
|
Weight |
57kg |
|
Volume |
60X20X45cm |
|
Corresponding test standard |
ISO-20344,GB/T20991-2007 |
Description
The tester is used for testing cutting resistance of shoe uppers and gloves.
But, it is not available for safety glove made by hard materials. A driving rotation round blade under a specified load
cuts the glove held by the fixture of tester to and fro. After test, compare it with its original statuses to get the results.
Specifications
|
Model |
GX-5093 |
|
Stroke |
50 mm |
|
Load |
5+/-0.05 N |
|
Max. Cutting Speed |
10 cm/s linear speed |
|
Counter |
LCD display , 0-99,999,999 |
|
Specimen Fixture |
2 sets |
|
Dimension (W×D×H) |
55x26x 46 cm |
|
Weight |
57.5 kg |
|
Standards |
EN 388, ISO 20344 |
General information
|
Place of Origin |
China |
|
Brand Name |
Gaoxin |
|
Model Number |
GX-5093 |
Transaction information
|
Minimum Order Quantity |
1set |
|
Price |
negotiation |
|
Packaging Details |
Non-fumigation wooden box |
|
Delivery Time |
15 working days |
|
Payment Terms |
FOB Shenzhen |
|
Supply Ability |
50 sets per month |
