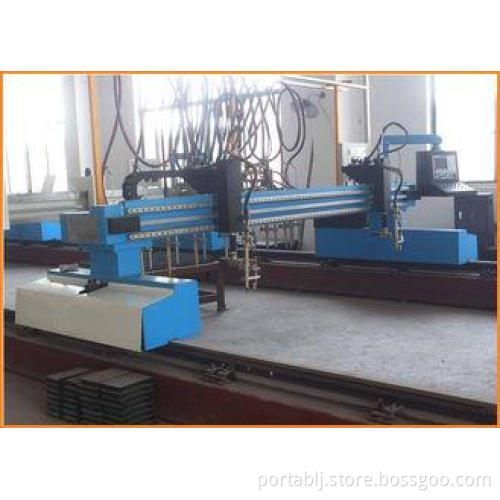

Dual-side CNC Flame Cutting Equipment For Oxy Fuel Cutting
3) Specifications:
|
Cross Beam Length(X axis) |
4m (can be lengthened upon demand) |
|
Longitudinal Rail Length(Y axis) |
6m (Rail can be lengthened upon demand) |
|
Effective Cutting Width (X axis) |
3.2m |
|
Effective Cutting Length (Y axis) |
4.8m |
|
Cutting Mode |
Flame only; Plasma only; Flame and Plasma |
|
Drive Mode |
Dual-side |
|
Drive Method |
Rack and pinion drive for X and Y axes |
|
Flame Cutting Thickness |
5-200mm |
|
Plasma Cutting Thickness |
1-60mm (according to the specification of plasma power source) |
|
Cutting Speed |
0-3500mm per minute |
|
Moving Precision |
0.01mm per step |
|
Power Source |
220V 50Hz 500-1000W |
|
Flame Gas |
Acetylene, Propane |
|
Plasma Gas |
Pressed air, Oxygen, N2 |
|
Torch Height Controller (AUTO) |
CHC600 Capacitive height control for flame cutting |
|
|
PHC330 Arc voltage height control for plasma cutting |
Warranty period is one year. Provide longtime free technical advisory services and Provide free technology consulting services During warranty period, free maintenance and technical support can be provided. (Except man-made major damages or damages arising from irresistible natural factors .
