Solid Carbide Square End Mill HRC50 Long Flute with TiAlN c
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

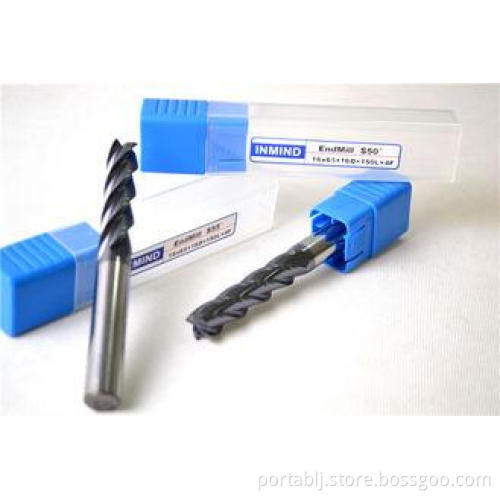

Solid Carbide Square End Mill Long Flute with TiAlN coated for CNC Milling,4 Flute,HRC50
Quick Detail:
0.6-0.8um Mirco grain size solid carbide rod
TIALN Coating :high Aluminium (Black),Middle Aluminium(Copper Colour) -Option
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC50
1 piece packing.
Long Flute Type
Description:
Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting
long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency
of machine,saving time of making moulds.Suggest to process iron and steel upto HRC50,Middle-low speed.
Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,
enhanced composited material with fiberglass,Also fit for milling copper.
Specifications:
|
Order No |
Cutting |
Flute Length |
Shank |
A.O.L |
|
d |
l |
D |
L |
|
|
3×15×3D×75L×4F |
3 |
15 |
3 |
75 |
|
4×20×4D×75L×4F |
4 |
20 |
4 |
75 |
|
5×25×5D×75L×4F |
5 |
25 |
5 |
75 |
|
5×25×6D×75L×4F |
5 |
25 |
6 |
75 |
|
6×25×6D×75L×4F |
6 |
25 |
6 |
75 |
|
8×30×8D×75L×4F |
8 |
30 |
8 |
75 |
|
3×15×3D×100L×4F |
3 |
15 |
3 |
100 |
|
4×20×4D×100L×4F |
4 |
20 |
4 |
100 |
|
5×25×5D×100L×4F |
5 |
25 |
5 |
100 |
|
6×30×6D×100L×4F |
6 |
30 |
6 |
100 |
|
8×35×8D×100L×4F |
8 |
35 |
8 |
100 |
|
10×45×10D×100L×4F |
10 |
45 |
10 |
100 |
|
12×50×12D×100L×4F |
12 |
50 |
12 |
100 |
|
6×35×6D×150L×4F |
6 |
35 |
6 |
150 |
|
8×40×8D×150L×4F |
8 |
40 |
8 |
150 |
|
10×50×10D×150L×4F |
10 |
50 |
10 |
150 |
|
12×55×12D×150L×4F |
12 |
55 |
12 |
150 |
|
14×60×14D×150L×4F |
14 |
60 |
14 |
150 |
|
16×65×16D×150L×4F |
16 |
65 |
16 |
150 |
|
18×70×18D×150L×4F |
18 |
70 |
18 |
150 |
|
20×75×20D×150L×4F |
20 |
75 |
20 |
150 |
Competitive Advantage:
Good Quality,Competitive price.Help the agent to get the get more large market
