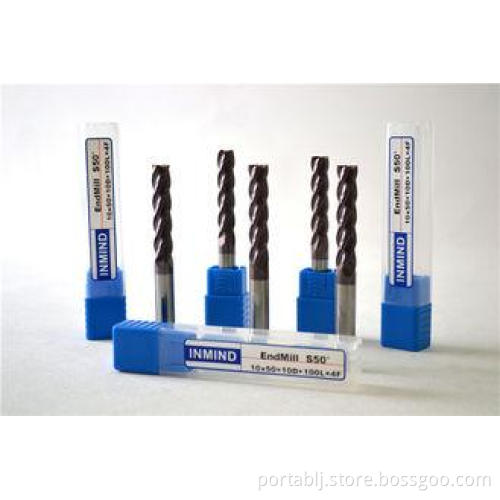

HRC50 Carbide Square End Mill Long Shank , Mirco Two flute Cutting Tool Endmill
Quick Detail:
0.6-0.8um Mirco grain size solid carbide rod
TIALN Coating ,high Aluminium (Black),Middle Aluminium(Copper)
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC50
1 piece packing.
Long Shank Type
Description:
Micro Grain Szie 0.6-0.8um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long
tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of
machine,saving time of making moulds.Suggest to process iron and steel upto HRC50,Middle-low speed.
Carbide Rod:Wc:90%,Co:10%,TRS:3800N/mm2, Grain Size:0.6-0.8um
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,
enhanced composited material with fiberglass,Also fit for milling copper.
Specifications:
|
Order No |
Cutting |
Flute Length |
Shank |
A.O.L |
|
d |
l |
D |
L |
|
|
3×8×3D×75L×4F |
3 |
8 |
3 |
75 |
|
4×11×4D×75L×4F |
4 |
11 |
4 |
75 |
|
5×13×5D×75L×4F |
5 |
13 |
5 |
75 |
|
5×13×6D×75L×4F |
5 |
13 |
6 |
75 |
|
6×15×6D×75L×4F |
6 |
15 |
6 |
75 |
|
8×20×8D×75L×4F |
8 |
20 |
8 |
75 |
|
3×8×3D×100L×4F |
3 |
8 |
3 |
100 |
|
4×11×4D×100L×4F |
4 |
11 |
4 |
100 |
|
5×13×5D×100L×4F |
5 |
13 |
5 |
100 |
|
6×20×6D×100L×4F |
6 |
20 |
6 |
100 |
|
8×25×8D×100L×4F |
8 |
25 |
8 |
100 |
|
10×30×10D×100L×4F |
10 |
30 |
10 |
100 |
|
12×35×12D×100L×4F |
12 |
35 |
12 |
100 |
|
6×20×6D×150L×4F |
6 |
20 |
6 |
150 |
|
8×25×8D×150L×4F |
8 |
25 |
8 |
150 |
|
10×30×10D×150L×4F |
10 |
30 |
10 |
150 |
|
12×35×12D×150L×4F |
12 |
35 |
12 |
150 |
|
14×40×14D×150L×4F |
14 |
40 |
14 |
150 |
|
16×45×16D×150L×4F |
16 |
45 |
16 |
150 |
|
18×45×18D×150L×4F |
18 |
45 |
18 |
150 |
|
20×45×20D×150L×4F |
20 |
45 |
20 |
150 |
Competitive Advantage:
Good Quality,Competitive price.Help the agent to get the get more large market
