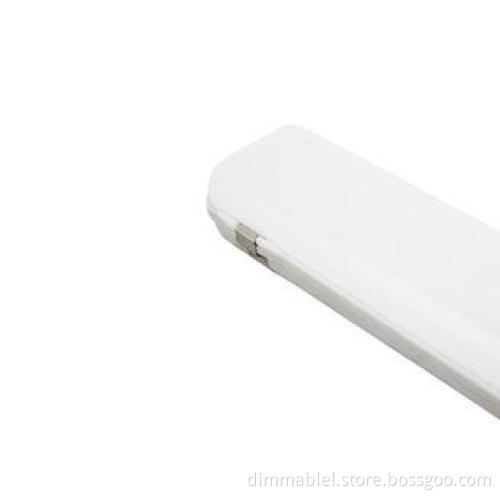

Ableled PC cover Led Tri Proof Light for Parking lot / Exhibition hall
Competitive Advantage:
5Years warranty
TUV driver adopted to European market, UL driver for American market, SAA driver adopted for Australian market
Ableled Tri-proof lighting description:
1. Own complete production lines to ensure the best quality and cost control
2. Complete test equipments, including EMC,IES,Hi-pot and 2M intergrating sphere etc
3. Patent design for structure,rotatable end cap and isolated power supply
4. Lower constant current to drive the LED to insure the lifespan and light decay
5. 300,000 monthly production ability to ensure the timely delivery
6. 5 years warranty for VDE,TUV , UL and PSE series tubes
7. OEM and ODM service
Ableled Tri-proof lighting specs:
|
Product Name |
60W IP65 Tri-proof LED light |
|
|
Item code |
A3-PX5-60W |
|
|
Dimension |
1575*135*93mm |
|
|
LED Type |
SMD 2835 |
|
|
LED Qty |
336LEDs |
|
|
Input Voltage |
AC100-240V/AC100-277V |
|
|
Power |
60W |
|
|
Luminous Flux |
5000-5200LM |
|
|
Light Efficacy |
85-95 LM/W |
|
|
Power Factor |
>0.95 |
|
|
CRI |
>80 |
|
|
Housing |
PC housing + PC striped/Frosted cover + Aluminum board |
|
|
LED Working Current |
50-55 mA |
|
|
LED Beam Angle |
135 degree |
|
|
Color Temperature |
WW |
3000-3500K 4000-4500K |
|
|
PW |
5000-5500K |
|
|
CW |
>6000K |
|
Lifespan |
30,000-50,000hrs |
|
|
Packing |
6PCS/CTN |
|
|
Carton size |
163*28*50CM |
|
|
Commercial lighting |
Supermarket/Shops/ Exhibition hall/Parking place/gas station, etc. |
|
|
Public lighting |
library/School/Tunnel/Metro/Bus/Train/Bus station, railway station, airport, etc. |
|
|
Industrial lighting |
Factory/Warehouse, etc. |
|
|
Input voltage |
AC100-240V/AC100-277V |
|
|
Working voltage |
DC30-40V |
|
|
Superior Taiwan chip |
high efficiency and energy saving more than 70% |
|
|
Strong shape |
with PC housing + PC cover |
|
|
Special design with Stainless steel clips |
||
|
Aluminum board |
Better heat dissipation |
|
|
Impact aging test |
100% for 24-48 hours impact aging test before packing |
|
|
IP65 Waterproof/ Dust-proof/ Moisture-proof |
||
Application:
Commercial lighting: Supermarket/Shops/ Exhibition hall/Parking place/gas station, etc.
Public lighting: library/School/Tunnel/Metro/Bus/Train/Bus station, railway station, airport, etc.
Industrial lighting: Factory/Warehouse, etc.
