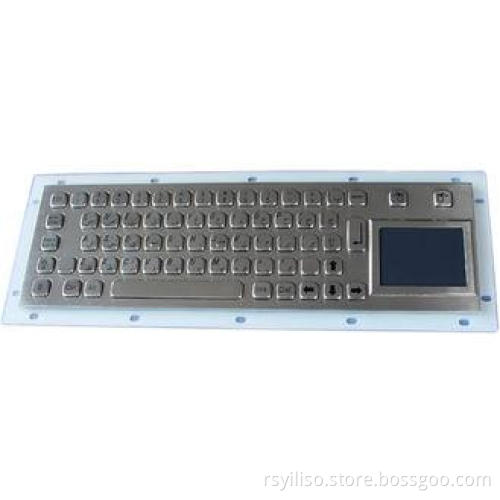

long stroke touchpad kiosk metal keyboard with panel mounting
Special Features:
1. RoHS, CE, FCC, IP65, ESD
2. 68 keys IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with sealed & ruggedized tough touchpad with scroll function (optional)
3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise
4. Rear panel mounting solution
5. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level
6. Ease of customizing with multiple languages, to accommodate foreign or custom variants
7. Complete electronic modules including controller in close consultation with our customers are available
8. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver
Applications:
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA | |
Key | 69 keys, super quality brushed stainless steel |
Key top style | Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
Key Size | 14.0mm x 14.0mm for normal keys, |
Key travel | 2.0mm |
Switch life | more than 10 million of operations |
Actuation Force | 0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Back Plate | 3.0mm thickness brushed & oxidized aluminium |
G.W. | 1.70KGs |
Dimensions | 343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel) |
TOUCHPAD | |
Touchpad cover | Composite |
More than Lifetime 10 million strokes | |
Mutual Capacitance sensing | |
X/Y position | 40 counts/mm |
X/Y position reporting | Relative |
Output | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5 V DC ±0.25V |
Current rating | 17 mA |
ELECTRICAL DATA | |
Supply Voltage | +5V DC +/-5% |
Current Rating | appr. 20mA |
| It is compliance with the council IEC 61000-4-2:2008; |
EMI: | EN 55022: 2010 |
EMS: | EN 55024:2010 |
Lifespan | > 5 years |
Switch Contact Material: | Carbon-on-Gold key switch technology PCB. |
Interface: | PS2, USB available. |
OS: | All windows, Linux, Unix, Mac OSX |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20oC to +60oC |
Storage temperature | -30oC to +70oC |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at + 40oC | 21 days, IEC 60512-6 |
Dry heat test at + 85oC | 10 days, IEC 60512-6 |
RELIABILITY | |
Certification | RoHS Compliant, CE and FCC,IP65, ESD |
Protection Level | IP65(front panel) |
Vandal resistant | IK09 |
Key Lifespan | >10 million actuations |
MTBF | >50000H |
MTTR | <30min |
