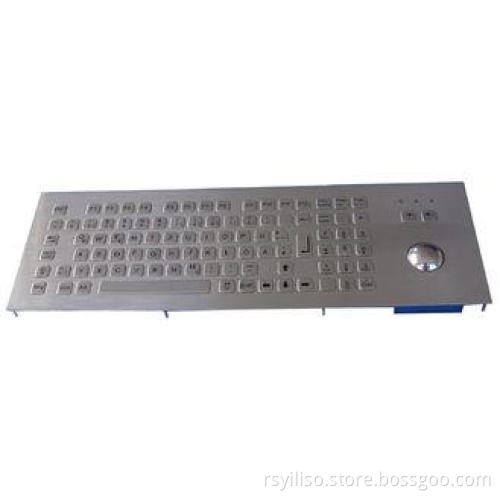

panel mounting short stroke kiosk metal keyboard with FN keys
Special Features:
1. 38.0mm trackball, 3 kinds trackball module optional: IP65 static mechanical trackball module with 400 DPI (MTB); IP68 dynamic optical trackball module with 800 DPI (OTB); IP68 dynamic laser trackball module with 1200 DPI (LTB)
2. full keyboard functionalities 100 keys Compact Format IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball and FN keys ( F1, F2..F10, F11, F12 are on the top line for easy operation)
3. CE, RoHS, FCC certificate, IP65, ESD
4. stainless steel top plate with threaded bolts for top panel mounting solution
5. industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
6. numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES)
7. Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & threaded bolts for easy tightly mounting to enclosure or panel
8. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers
9. Ease of customizing with multiple languages, to accommodate foreign or custom variants
10. Complete electronic modules including controller in close consultation with our customers are available
11.PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver
12. The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM
Optional Trackball Modules:
|
Product Classifications and Descriptions |
Interface |
Trackball IP rated |
|
|
K-TEK-B420-MTB-KP-FN
|
Keyboard; 400 DPI Mechanical Trackball; Adjustable Backlight is optional |
USB/PS2 |
IP65 static |
|
K-TEK-B420-OTB-KP-FN |
Keyboard; 800 DPI Optical Trackball; Adjustable Backlight is optional |
USB/PS2 |
IP68 dynamic |
|
K-TEK-B420-LTB-KP-FN |
Keyboard; 1200 DPI Laser Trackball; Adjustable Backlight is optional |
USB/PS2 |
IP68 dynamic |
|
Other language versions/interfaces/configuration available on request |
|||
Applications:
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
|
MECHANICAL DATA |
|
|
Key |
100 keys, super quality SUS304 brushed stainless steel |
|
Key top style |
Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
|
Key Size |
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar. |
|
Key travel |
0.45mm |
|
Tracker ball |
38.1mm (1.5’) diameter, ----IP65 static mechanical trackball module with 400 DPI, ----IP68 dynamic washable optical trackball module with 800 DPI, ----IP68 dynamic washable laser trackball module with 1200 DPI, |
|
Switch life |
more than 5 million of operations |
|
Actuation Force |
2.0N +/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N +/-0.1N for key 14.0mm x 28.0mm (pressure point) |
|
Front Plate |
1.5mm thickness super quality brushed stainless steel |
|
Back Plate |
3.0mm thickness brushed & oxidized aluminum |
|
Actuator/keys materials |
stainless steel |
|
G.W. |
2.50KGs |
|
Dimensions |
420.0mm x 145.0mm (L x W ) |
|
ELECTRICAL DATA |
|
|
Supply Voltage |
+5V DC +/-5% |
|
Current Rating |
appr. 30mA |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
|
EMI: |
EN 55022: 2010 |
|
EMS: |
EN 55024:2010 |
|
Lifespan |
> 5 years |
|
Switch Contact Material: |
Gold-on-Gold key switch technology PCB. |
|
If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES. |
|
|
Interface: |
Interface: PS2, USB available, RS232 for EPP |
|
OS: |
All windows, Linux, Unix, Mac OSX |
|
ENVIRONMENTAL ADAPTABILITY |
|
|
Operating temperature |
-20oC to +60oC |
|
Storage temperature |
-30oC to +70oC |
|
Operating RH |
30-90% |
|
Atmospheric pressure |
60-106Kpa |
|
Saline mist |
96 hours, IEC 60512-6 |
|
Damp heat test at + 40oC |
21 days, IEC 60512-6 |
|
Dry heat test at + 85oC |
10 days, IEC 60512-6 |
|
RELIABILITY |
|
|
Certification |
RoHS Compliant, CE and FCC,IP65,ESD |
|
Protection Level |
IP65(front panel) |
|
Vandal resistant |
IK10 |
|
Key Lifespan |
>5 million actuations |
|
MTBF |
>50000H |
|
MTTR |
<30min |
