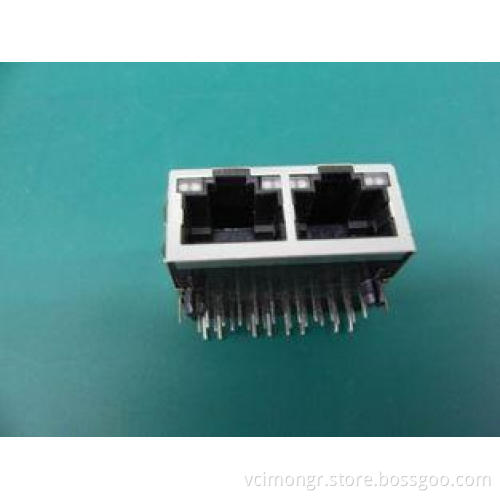

UTP Cat 6 2 Port Shielded RJ45 Connector 10 Pin , 10 / 100 / 1000M Net Card RJ-45 Jacks
1, port: 2port(1X2)
2, Base:10/100/1000base,tab-up
3, LEDS:YES
4, EMI fingers:YES
5, Usage:KRJ-2546QNL
Descriptions:
* 10/100/1000Base-Tx RJ45 1X2 Right Angle with LEDS
* 2 port 1X2 Tab-Up RJ45 with internal magnetics
* Internal magnetics are 100% electrically tested for HI-POT and functionality
* Suitable for CAT5&6 fast Ethernet Cable or better UTP
* 350uHminimum OCL with 8mA bias current
* High performance for maximum EMI suppression
* Minimum 1500Vrms isolation per IEEE 802.3 requirement
* ROHS-6 peak wave solder temperature rating 260℃
* Operating temperarure range :0℃ to +70℃
* Storage temperature range :-40℃ to +85℃
* Number of positions:10
* Number of contacts loaded:8
* Shieded:YES
* Rohs compliant
* Length:25.4mm
* LEDS:YES
* EMI fingers:YES
* LEFT led:Green,RIGHT led:Green
* Usage:KRJ-2546QNL
Applications:
10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,
MODEM,HomePNA,DSL/ADSL and so on.
Electrical Specifications:
|
Insertion Loss dB max |
Return Loss dB min | Cross Talk(dB TYP) |
Common Mode
Rejection |
Hipot (vrms) |
OCL (uH MIN) |
TR | ||||
| 1-100MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-100MHZ | 1500 | 350 | TX:RX |
| -1 | -16 | -14 | -10 | -40 | -35 | -30 | -35 | 1:1 | ||
Material specifications:
* Plastic core:Glass fiber filler PBT Black(UL94V-0)
* Contact:gold pin0.35mm thick phos bronze plated nickel then with 50u’gold
* PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
* Housing:Phenolic, PBT Black (UL94V-0)
* Metal shell:Copper Alloy ,Tin and Nickel plated
