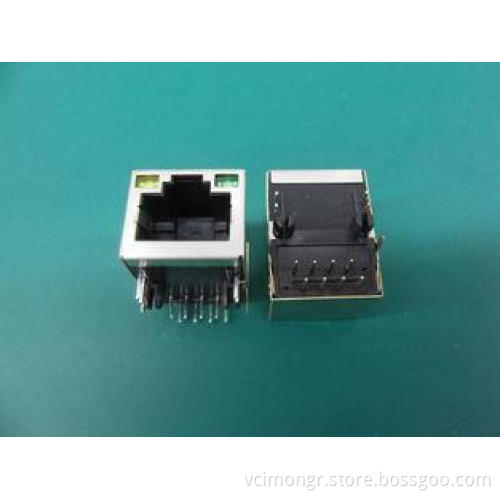

Tab-Up Networking Shielded RJ45 Connector / Set-Top Box RJ 45 Modular Jack
Quick Details:
1.Type: Shielded rj45 jack
2.TAB direction: Up
3.Port: Single
4.LEDS:YES
5.EMI fingers:NO
6.Length: 21.3mm
Descriptions:
* Shieded:YES
* Rohs compliant
* Length:21.3mm
* LEDS:YES
* EMI fingers:NO
* Number of positions:8
* Number of contacts loaded:8
* LEFT LED:Yellow,RIGHT LED:Green
* Usage: KRJ-H56NL
* 10/100Base-Tx RJ45 single port 1X1 Right Angle with LEDS with side entry
* Single port 1X1 Tab-Up RJ45 with internal magnetics
* Internal magnetics are 100% electrically tested for HI-POT and functionality
* Suitable for CAT5&6 fast Ethernet Cable or better UTP
* 350uHminimum OCL with 8mA bias current
* High performance for maximum EMI suppression
* Minimum 1500Vrms isolation per IEEE 802.3 requirement
* ROHS-6 peak wave solder temperature rating 260℃
* Operating temperarure range :0℃ to +70℃
* Storage temperature range :-40℃ to +85℃
Applications:
PC Boards,10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver, IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA, DSL/ADSL and so on
Electrical Specifications:
| Insertion Loss dB max | Return Loss dB min | Cross Talk(dB TYP) | Common | Hipot (vrms) | OCL | TR | ||||
| 1-100MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-30MHZ | 30-60MHZ | 60-80MHZ | 1-100MHZ | 1500 | 350 | TX:RX |
| -1 | -16 | -14 | -10 | -40 | -35 | -30 | -35 | 1:1 | ||
Material specifications:
* Plastic core:Glass fiber filler PBT Black(UL94V-0)
* Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
* PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
* Housing:Phenolic, PBT Black (UL94V-0)
* Metal shell:Copper Alloy ,Tin and Nickel plated
