AmlogicS805 Quad Core Android Smart TV Box DLNA Miracast Fa
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

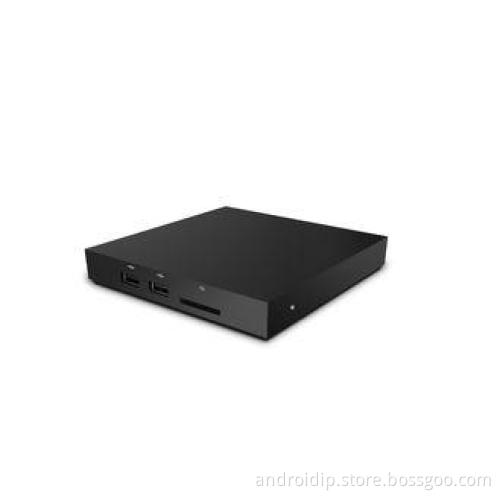

AmlogicS805 Quad Core Android Smart TV Box DLNA Miracast FaceBook Skype Google IPTV Box WiFi Support
Specifications:
| Hardware Spec: | |||||
| Operation System | Android 4.4 | ||||
| Language | Chinese,English...Multi-Language support | ||||
| CPU | (Amlogic S805)Quad core ARM Cortex-A5 | ||||
| GPU | Quad-core ARM Mali-450 GPU up to 600MHz+(DVFS),OpenGL ES 1.1/2.0 and OpenVG 1.1 support | ||||
| SDRAM | DDR3 512MB / 1GB | ||||
| Flash | 8GB / 16GB / 32GB(EMMC)option | ||||
| Network | IEEE 802.11 a/b/g/n 2.4GHz / 5.0GHz(option) | ||||
| WIFI Module | RTL8188 / AP6210 / AP6330 | ||||
| The extended storage | SD Card, up to 32GB | ||||
| Power Supply | DC 5V/2A 3.5mm DC-in | ||||
| Interface: | |||||
| HDMI Output | HDMI HDMI1.4b to support maximum 1200p display | ||||
| USB Port | 3*USB Host | ||||
| Data Output | 1*SPDIF | ||||
| Card Readere | 1*SD Card | ||||
| Network | 1*RJ45 10M/100M | ||||
| Power Supply | 1*DC Jack | ||||
| Media Parameter: | |||||
| Audio Container | supports MP3 / AAC / WMA / RM / FLAC / OGG and programmable with 5.1 down-mixing | ||||
| Audio Out | HDMI Data Output | ||||
| Video Decoder | supports MKV / WMV / MPG / MPEG / DAT / AVI / MOV / ISO / MP4 / RM AND JPG file formats | ||||
| Video Encoder | the independent encoder is able to encode in JPEG and H.264 up to 1080p at 30fps | ||||
| Resolution | Maximum resolution is 1200p | ||||
| H.264 Data Rate | Up to 1080p@60fps | ||||
| Software Extension | Support Google Play & APK install. | ||||
| DLNA,Miracast Protocol | Support DLNA,Miracast Protocol | ||||
| Remote Control | Remote controller | ||||
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK ) | ||||
| Offic Software | WORD/EXCEL/PDF(Depends on APK install) | ||||
| Others Parameters: | |||||
| Operationg Temperature | 0~70℃ | ||||
| Storage Temperature | -10~70℃ | ||||
| Humidity environment | 5%-90%(No condensation) | ||||
| Certification | CCC,CE,FCC,Wi-Fi | ||||
| Package : | |||||
| Dimension | 117*117*18.5mm | ||||
| Net weight | 240g | ||||
| Gift Box Size | 195*153*70mm | ||||
| Carton box weight | 694g | ||||
| Carton Box Size | 420*320*385mm | ||||
| Packing accessories : | |||||
| 1,User manual 2,5V/2A adapter 3,Remote control 4,HDMI cable 5,Giftbox packing |
|||||
Description:
DDR3 1GB and Nand Flash 8GB
Android TV Box is based on Android 4.4 OS,
AmlogicS805 1.5GHz Quad Core
Bluetooth 4.0,
It is equipped with 1GB DDR3 RAM and 8GB ROM.
10/100M Lan.802.11b/g/n Dual Band WiFi(2.4GHz/5GHz)
Quad Core Mali-450
Support H.264 video decoding and output built-in wifi.
With Standard RJ45 port,
You can enjoy watching videos,playing games,Surfing the interne etc.
Competitive Advantage:
1. We are specilizing in Amlogic Chip solution
We have the strong technical support from Amlogic team directly.
2, Based on our powerful hardware and software support, we can meet customer requirement for
OEM & ODM service independently.
3.New Design of Plastic Housing.
4.With dust-free workshop.All material with ROHS standard.
Packing details
Unit size: TV box size:117*117*18.5mm
Package size:195*153*70mm
Carton size:420*320*385mm
QTY/ctn:20 units per carton
G.W.:15.6 Kg per carton
