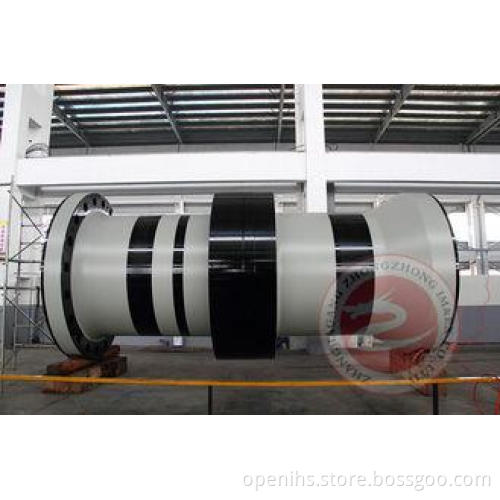

OEM 20SiMn Heavy Alloy Steel Forgings / single flange Forgings For hydropower spindle
Spindle shaft, double flanges of hydropower spindle, hydropower spindle, single flange of hydropower spindle, shaft forging
Quick Detail:
1. Spindle shaft, double flanges of hydropower spindle, hydropower spindle, single flange of hydropower spindle, shaft forging used for hydraulic power device.
2. Alloy steel (20SiMn etc.) or as per customer’s requirements
3. Big size steel forging, alloy steel forgings
Description:
The forged steel shaft-hydropower spindle forging is widely used for large scale hydropower equipment industry. For example: Alstom, Voith Siemens Hydro Power Generaion, Ha’erbin Hydropower group, Toshiba Hydro power and so on. The products conform to Standard of ASTM A668/A668-96 and JB/T1270-2002.
The manufacturing equipment is 30~185MN hydraulic press, the forging ratio >3, the technical condition is in accordance with the standard of ASTM A668/A668-96 and JB/T1270-2002.
The product can be provided as per your drawing or specified requirements.
Specifications:
Description | Spindle shaft, double flanges of hydropower spindle, hydropower spindle, single flange of hydropower spindle, shaft forging |
material | Alloy steel (20SiMn etc.) |
Material standard | ASTM or GB/T3077-1999 |
Dimension | Max. OD of flange: 2500mm |
Weight | Max. 100 ton |
Smelting Process: | EF+LF + VD |
Process | Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough |
UT standard | ASTM A388 or EN10228 |
Applications:
The forged steel shaft-hydropower spindle forging is widely used for large scale hydropower equipment industry. For example: Alstom, Voith Siemens Hydro Power Generaion, Ha’erbin Hydropower group, Toshiba Hydro power and so on. The products conform to Standard of ASTM A668/A668-96 and JB/T1270-2002.
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, “in-time” delivery
Why us?
1. Short production time, “in-time” delivery;
2. We can provide the steel forgings whatever size, material or type as per your requirements;
3. Good quality and competitive price
Our Zhongzhong company has long term business in steel forgings industry. Customers feel satisfied with our products and service.
